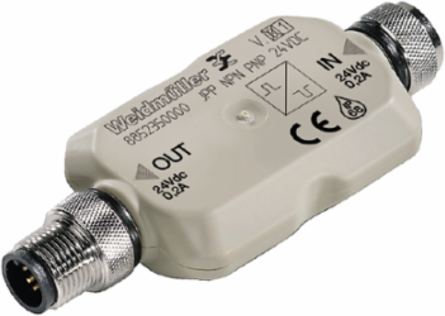

Weidmuller 8852350000 JACKPAC Sensor Level Converter 18-30V DC, 0.4A, M12 Plug, IP67
- MPN: 8852350000
- PPN: WDM-8852350000
CAD
$120.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
JACKPAC, Level converter, Rated control voltage: 18...24...30 V DC , Rated switching voltage: 18...30 V DC, Continuous current: 0.4 A, M12 plug/socket, A-coded
Documentation & Downloads
Specifications
General Data
| Colour | grey |
|---|
Load Side
| Rated switching voltage | 18...30 V DC |
|---|---|
| Rated switching current | 400 mA |
| Continuous current | 0.4 A |
|---|---|
| Voltage drop at max. load | ≤ 1 V |
Approvals
| Approvals | CULUS |
|---|---|
| UL File Number Search | E141197 |
| ROHS | Conform |
|---|

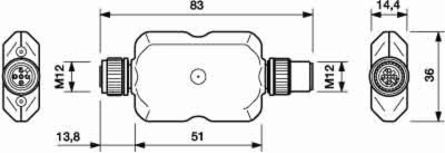

Dimensions And Weights
| Length | 83 mm |
|---|---|
| Width | 36 mm |
| Height | 14.4 mm |
| Net weight | 52 g |
| Length (inches) | 3.268 inch |
|---|---|
| Width (inches) | 1.417 inch |
| Height (inches) | 0.567 inch |
Connection Data

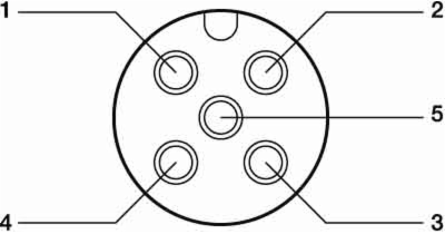

| Wire connection method | M12 plug/socket, A-coded |
|---|
Technical Specifications For Cable
| Number of poles | 1 |
|---|
Contact Data
| Contact type | (Solid state relay) |
|---|
Control Side
| Rated control voltage | 18...24...30 V DC |
|---|---|
| Input current for sensor | < 200 mA |
| Sensor | 2-/ 3-Conductor Sensor NPN-type |
|---|
Input
| Rated control voltage | 18...30 V DC |
|---|
Classifications
| ETIM 6.0 | EC001134 |
|---|---|
| eClass 9.0 | 19-17-92-90 |
| eClass 10.0 | 19-17-92-90 |
| ETIM 7.0 | EC001134 |
|---|---|
| eClass 9.1 | 27-21-91-90 |
| UNSPSC | 30-21-18-01 |
Output
| Rated switching voltage | 18...30 V DC |
|---|
| Continuous current | 0.4 A |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Rated voltage | 32 V |
|---|---|
| Surge voltage category | I |
| Pollution severity | 2 |
|---|---|
| Protection degree | IP67 |
Temperatures
| Operating temperature, max. | 60 °C |
|---|---|
| Storage temperature, max. | 85 °C |
| Operating temperature | 0 °C...60 °C |
| Operating temperature, min. | 0 °C |
|---|---|
| Storage temperature, min. | -20 °C |
| Storage temperature | -20 °C...85 °C |
Ratings Iecex/Atex/Cul
| Certificate no. (cULus) | E141197 |
|---|
Further Details Of Approvals / Standards
| Standards | DIN EN 50178, UL508 |
|---|
| Certificate no. (cULus) | E141197 |
|---|
