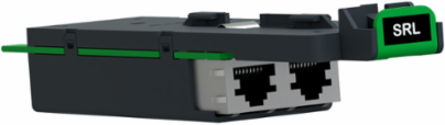

Schneider Electric REL51036 Easergy P5 RS485 Serial Communication Module, 176 mm Height, 2 RJ45 Ports

Easergy P5 RS485 Serial Communication Module, 176 mm Height, 2 RJ45 Ports
  • MPN: REL51036
  • PPN: SCH-REL51036

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$217.48/ EA

    Description

    Plug & play communication module for Schneider Electric's Easergy P5 withdrawable protective relay. This serial line communication module offers RS485 connection to Easergy P5. It can be installed to Easergy P5 any time: during installation, commissioning or even during maintenance. This plug and play communication module offers 2 ports RJ45, EIA 2 to wire RS485 or EIA 4 to wire RS485 standard. It enables the use of serial protocols in Easergy P5: Modbus, DNP 3.0, IEC 60870-5-103, IEC 60870-5-101. The product dimensions are 176 mm in height (6.93 in) 35 mm in width (1.38 in) and 26 mm in depth (1.02 in) for a net weight of 56 g (0.123 lbs). Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification. This product can be installed in slot N of the Easergy P5 protection relay.

    Specifications

    Specifications

    Range Of Product
    PowerLogic P5
    Product Or Component Type
    communication module
    Accessory / Separate Part Categorymodules and interfaces

    Environment

    Ambient Air Temperature For Operation
    -40-70 °C
    Width
    35 mm
    Net Weight
    0.056 kg
    Height176 mm
    Depth26 mm

    Offer Sustainability

    China Rohs Regulation
    X
    Environmental Disclosure
    ENVPEP1901010
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Circularity ProfileENVEOLI1901010
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
