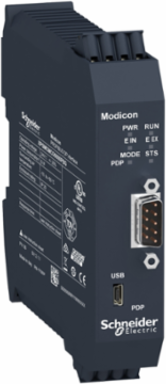

Schneider Electric XPSMCMCO0000PBG Profibus DP Diagnostics Expansion Module, 22.5mm Depth, IP20
- MPN: XPSMCMCO0000PBG
- PPN: SCH-XPSMCMCO0000PBG
CAD
$1143.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Profibus DP Diagnostics Expansion Module, 22.5mm Depth, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
Depth114.5 mm
Communications & Management Attributes
- Communication Port Protocol
- Profibus DP
Complementary Attributes
- Maximum Cable Distance Between Devices
- 1000 m, 100 m, 1200 m, 400 m, 200 m
Us Rated Supply Voltage24 V - 20...20 % DC
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end, 0.5-1 mm² - AWG 20...AWG 18 flexible with cable end, with double bezel
- Local Signalling
- LED green PWR power ON, LED green RUN operating, LED red E IN internal error, LED red E EX external error, LED green/red STS communication status, LED green/red Mode connection state
- Vibration Resistance
- +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to EN/IEC 61496-1
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Current Consumption
- 0.125 mA
- Electrical Connection
- spring terminal
- Method Of Access
- server
- Number Of Port
- 1
- Power Dissipation In W
- 3 W
- Product Or Component Type
- non-safe communication module
- Range Of Product
- Modicon MCM
- Service Life
- 20 year(s)
- Sustainable Packaging
- No
- Connections Terminals
- 2 spring clamp terminals, removable terminal block
- Height Nominal
- 99 mm
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to EN/IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to EN/IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to EN/IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to EN/IEC 61000-4-3
Transmission Rate500 kbit/s, 9.6 kbit/s, 19.2 kbit/s, 45.45 kbit/s, 93.75 kbit/s, 187.5 kbit/s, 1.5 kbit/s, 3 Mbit/s, 6 Mbit/s, 12 Mbit/s
Certificate AgencycULus, RCM, TÜV
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1847
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Connector Typefemale SUB-D 9
Device Short NameXPSMCM
Insulation250 V AC between power supply and housing EN/IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
ReturnabilityNo
Shock Resistance10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months18
Width Nominal22.5 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 10-95 %
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- non-safe communication module
Range Of ProductModicon MCM
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
