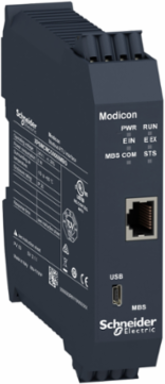

Schneider Electric XPSMCMCO0000MBG Modbus SL Diagnostic Expansion Module, IP20, 22.5 x 99 x 114.5 mm
- MPN: XPSMCMCO0000MBG
- PPN: SCH-XPSMCMCO0000MBG
CAD
$1143.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modbus SL Diagnostic Expansion Module, IP20, 22.5 x 99 x 114.5 mm
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
Depth114.5 mm
Communications & Management Attributes
- Communication Port Protocol
- Modbus serial
Complementary Attributes
- Maximum Cable Distance Between Devices
- 1000 m
Important Information Attributes
- Cable Cross Section
- 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel, 0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.5-1 mm² - 20 AWG...18 AWG flexible with cable end, with double bezel
- Transmission Rate
- 1.2 kbit/s, 2.4 kbit/s, 4.8 kbit/s, 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s
- Certificate Agency
- cULus, RCM, TÜV
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5 kg CO2 eq., 0.47866606075528256
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 5 kg CO2 eq., 5.106589890664379
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Current Consumption
- 0.125 mA
- Electrical Connection
- spring terminal
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Overvoltage Category
- II
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Returnability
- No
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To enable communication and data exchange between safety controllers and fieldbus networks to 4W during 10 years at a 100% use rate.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 262.8
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 99 mm
- [Us] Rated Supply Voltage
- 24 V - 20...20 % DC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620090
Local SignallingLED green PWR power ONLED green RUN operating, LED red E IN internal errorLED red E EX external error, LED green/red NET connection stateLED green/red STS communication status
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Carbon Footprint Of The Distribution Phase [A4]0.07466476661982983, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.16714574664454726, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]127 kg CO2 eq., 127.22144640918272
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1847
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Connector TypeRJ45
Device Short NameXPSMCM
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Method Of Accessserver
Number Of Port1
Power Dissipation In W3 W
Product Or Component Typenon-safe communication module
Range Of ProductModicon MCM
Service Life20 year(s)
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint133 kg CO2 eq.
Pep CodeENVPEP2606033_V1
Pep Verification Date2026-06-22
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity mix; Consumption mix; Low voltage; 2022; Italy, IT
Energy Model - Use [B6]Electricity mix; Consumption mix; Low voltage; 2022; Europe, EU-27
Recyclability Potential In %21
Width Nominal22.5 mm
Connections - Terminals2 spring clamp terminals, removable terminal block
Package Weight(Lbs)231 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2606033_V1
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 10-95 %
- Pep Verification Date
- 2026-06-22
- Psr Version
- PSR-0005-ed3-EN-2023 06 06
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint133.04851287386674
Eu Rohs DirectiveCompliant
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2606033_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- non-safe communication module
Range Of ProductModicon MCM
ETIM
- ETIM 8
- EC001423
ETIM 9EC001423
