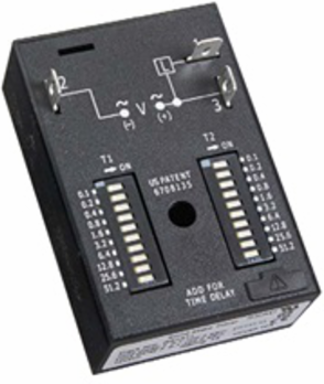

Littelfuse RS6A13 RS6A13 - RS Series
- MPN: RS6A13
- UPC: 079458998436
- PPN: LTF-RS6A13
CAD
$223.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Operation (Recycling - ON Time First) Upon application of input voltage, the output energizes and the T1 ON time begins. At the end of the ON time, the output de-energizes and the T2 OFF time begins. At the end of the OFF time, the output energizes and the cycle repeats as long as input voltage is applied. Reset: Removing input voltage resets the output and time delays, and returns the sequence to the ON time. Operation (Recycling - OFF Time First) Upon application of input voltage, the T2 OFF time begins. At the end of the OFF time, the output energizes and the T1 ON time begins. At the end of the ON time, the output de-energizes and the cycle repeats as long as input voltage is applied. Reset: Removing input voltage resets the output and time delays, and returns the sequence to the OFF time.
Specifications
Key Specifications
| Input Voltage (V) | 230VAC |
|---|---|
| Input AC Line Frequency (Hz) | 50/60Hz |
| Output Load Rating (VA) | 1A steady state 10A inrush at 60°C |
| Time Delay Range | ON time first: 0.1 - 102.3s in 0.1s increments; OFF: 1 - 1 023m in 1m increments |
| Repeat Accuracy (%) | ±0.1% or 20ms whichever is greater |
| Setpoint vs Ambient Temperature and Operating Voltage (%) | ≤ ±2% |
| Insulation Resistance | ≥100 MΩ |
| Circuitry | Encapsulated |
| Termination Type | 0.25 in. (6.35mm) male quick connect terminals |
| Operating Temperature | -40° to 75°C (-40°F to 167°F) |
| Humidity | 95% relative non-condensing |
| Weight (lbs/g) | ≅3.9oz (111g) |
| Input Tolerance (%) | ±20% |
|---|---|
| Output Type | Solid state |
| Output Voltage Drop (V) | ≅2.5V @ 1A |
| Reset Time (ms) | ≤150ms |
| Setting Accuracy | ≤±2% or 20ms whichever is greater |
| Open State Leakage Current (A) | ≅5mA @ 230VAC |
| Dielectric Breakdown | ≥2000V RMS terminals to mounting surface |
| Power Consumption | ≤2VA |
| Mounting Method | Surface mount with one #10 (M5 x 0.8) screw |
| Storage Temperature (F/C) | -40° to 85°C (-40°F to 185°F) |
| Dimensions | 3.00 x 2.00 x 1.50 in. (76.7 x 51.3 x 38.1mm) |
| Sample capable | No |
