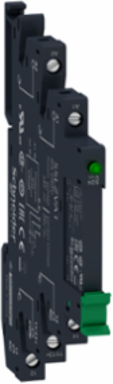

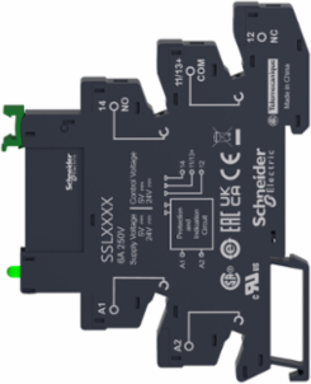

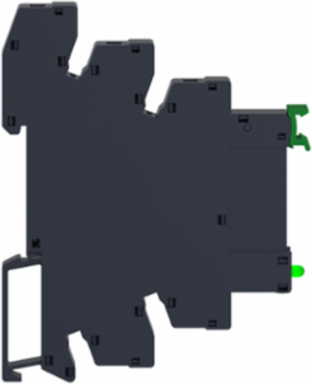

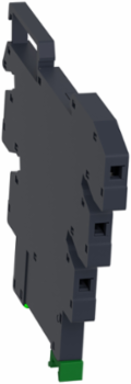

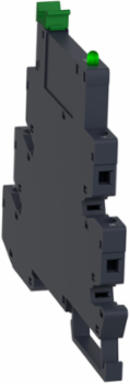

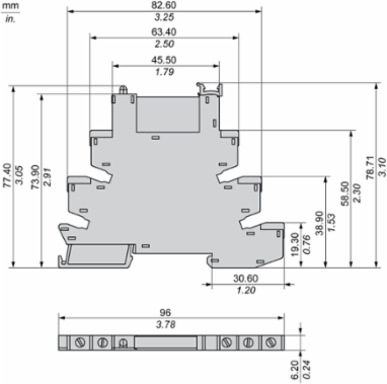

Schneider Electric SSL1A12BDRPV Harmony Solid State Relay, 2A, 16-30V DC Input, IP67, Screw Socket
- MPN: SSL1A12BDRPV
- PPN: SCH-SSL1A12BDRPV
CAD
$33.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 2A random switching slim relay with 16Vdc to 30Vdc input and 24Vac to 250 Vac output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Features
- This part number ships as a complete, factory-integrated assembly featuring a slim Harmony solid-state relay pre-mounted onto an optimized screw-terminal socket. This ready-to-go design eliminates matching confusion, prevents physical alignment errors during assembly, and slashes field installation time for panel shop technicians.
- Boasting an ultra-thin 6.2 mm profile width (0.24 inches) including its integrated housing, this compact footprint maximizes space within high-density control cabinets. It allows facility integrators to pack dozens of high-speed interface points into standard rows, drastically reducing total enclosure volume without compromising mechanical access.
- Unlike zero-crossing alternatives, this solid-state interface utilizes rapid "random" voltage switching driven by a premium SCR output stage. It turns on immediately within 5 milliseconds of receiving a 16V to 30V DC input command, providing the precision timing needed for high-frequency pulse modulation, rapid phase-angle control, or immediate resistive and inductive execution in packaging and injection molding applications.
- Rated for a continuous single-phase load current of 2A between 24V and 250V AC, the solid-state infrastructure easily handles demanding field equipment while resisting internal erosion. With a robust surge current threshold up to 120A (for 16.6 ms) and an off-state transient overvoltage tolerance of 600V AC, it prevents premature component failure caused by voltage spikes or high-inrush startup surges.
- Engineered without fragile moving parts, this module features an IP67 water-resistant encapsulation on the core relay and IP20 touch-safe protection on the socket frame. Fully certified to UL 508, CSA, and CE benchmarks, it offers a vibration-immune alternative to traditional mechanical micro-relays across a wide operating window of -4 F to 158 F (-20 C to 70 C).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia
Depth79.5 mm
Complementary Attributes
- Maximum Voltage Drop
- <1.1 V on-state, <1.1 V on-state<1.1 V on-state, <1.1 V on-state
- Line Rated Current
- 2 A
- Maximum Switching Voltage
- 5 V DC turn-off
- Rated Current
- 2 A
Absolute Maximum Voltage600 V AC
Maximum Leakage Current4 mA off-state
Minimum Switching Voltage16 V DC turn-on
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Marking
- cURus, CSA, CE, EAC
- Control Circuit Voltage
- 16...30 V
- [Uc] Control Circuit Voltage
- DC, 16...30 V
- Maximum I²T For Fusing
- 285 A².s for 10 ms at 50 Hz, 260 A².s for 8.3 ms at 60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0039479079
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.5 kg CO2 eq., 0.476003263
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Device Short Name
- SSL
- Flame Retardance
- V0 conforming to UL 94
- Mounting Support
- screw socket
- Phase
- 1 phase
- Product Or Component Type
- pre-assembled plug-in relay with socket
- Response Time
- 5 ms (turn-on)10 ms (turn-off)
- Software Version
- EIME v5.6
- Total Lifecycle Carbon Footprint
- 11 kg CO2 eq.
- Database Version
- 2017-03
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
- Functional-unit Unit
- unité (unit)
- Energy Consumption On Product Lifetime In Kwh
- 42.7488
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Height Nominal
- 96.5 mm
- Dv/Dt
- 500 V/µs off-state at maximum voltage
- Package Weight(Lbs)
- 28.000 g
- Warranty (In Months)
- 18
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 39.0461
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 26.596
- Customs Code
- 8536490080
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torque< 0.5 N.m, < 0.5 N.m, 4.4 lb-in
Certificate AgencyUL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST
Connections - Terminalsflexible cable with cable end, 0.2...2.5 mm² 24 AWG...14 AWG), solid cable with cable end, 0.2...2.5 mm² 24 AWG...14 AWG), screw connectors
Carbon Footprint Of The Distribution Phase [A4]0.0034836219, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0017681113, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]10 kg CO2 eq., 10.4722766667
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Dielectric Strength2500 V for input/output
Load Current0.07-2 A
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Solid State Relays
ReturnabilityYes
Sustainable PackagingYes
Pep CodeENVPEP2504008EN
Pep Verification Date2017-04-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %27
Width Nominal6.2 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]450.729
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]26.596
Water Pollution (M3) Operational Energy Use [B6]432.124
Environment Attributes Main
- Ambient Air Temperature For Operation
- -20-70 °C, -20-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 10.9574795707
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2017-04-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2504008EN
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2504008EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typepre-assembled plug-in relay with socket
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Solid State Output Type
- random voltage switching, SCR output
- Output Voltage
- 24...250 V AC
Output Switching Moderandom voltage switching
Surge Protection And Filtering Attributes
- Surge Current
- 120 A 16.6 ms115 A 20 ms
Contractual Warranty Attributes
- Warranty Period
- 18 Months
Warranty18 Months
Input Attributes
- Input Impedance
- 3.43 kOhm
Overview Attributes
- Device Presentation
- complete product
