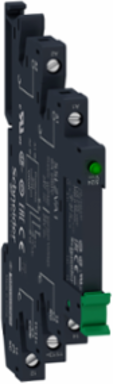

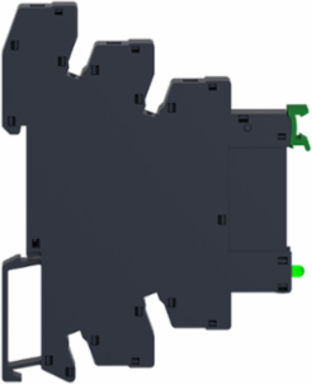

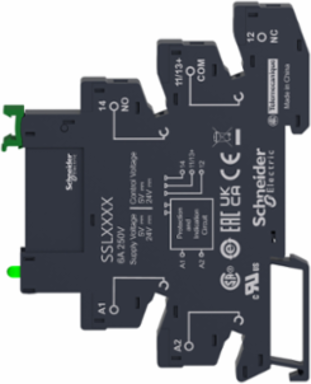

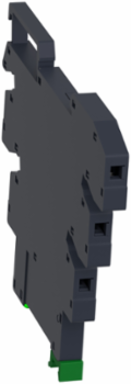

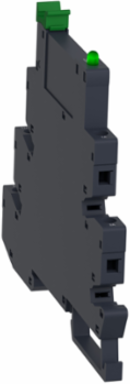

Schneider Electric SSL1D03BDPV Harmony Solid State Relay, 3.5A, 16-30V DC Input, IP67 Encapsulation
- MPN: SSL1D03BDPV
- PPN: SCH-SSL1D03BDPV
CAD
$38.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 3.5A DC switching slim relay with 16Vdc to 30Vdc input and 1Vdc to 24Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by screw connector type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France, Indonesia, United States |
|---|
| Depth | 79.5 mm |
|---|
Complementary Attributes
| Maximum Voltage Drop | <0.5 V on-state, <0.5 V on-state<0.5 V on-state, <0.5 V on-state |
|---|---|
| Line Rated Current | 3.5 A |
| Maximum Switching Voltage | 5 V DC turn-off |
| Rated Current | 3.5 A |
| Absolute Maximum Voltage | 30 V DC |
|---|---|
| Maximum Leakage Current | 0.001 mA off-state |
| Minimum Switching Voltage | 16 V DC turn-on |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Marking | cURus, CSA, CE, EAC |
| Control Circuit Voltage | 16...30 V |
| [Uc] Control Circuit Voltage | DC, 16...30 V |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0034835806, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0001632537, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 17 kg CO2 eq., 17.288176 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Dielectric Strength | 2500 V for input/output |
| Load Current | 0.001-3.5 A |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony Solid State Relays |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2504008EN |
| Pep Verification Date | 2018-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; <lt/> 1kV; EU-27 |

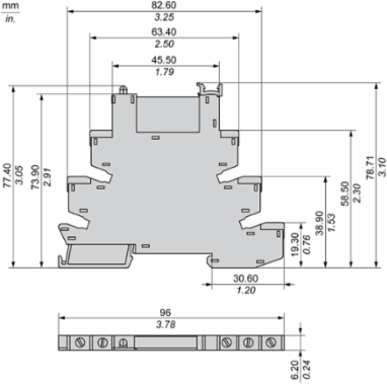

| Height Nominal | 96.5 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 43.9052 |
| Water Pollution (M3) Operational Energy Use [B6] | 713.3588 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | < 0.5 N.m, < 0.5 N.m, 4.4 lb-in |
| Certificate Agency | UL, CSA, CE, UL 508, CSA22.2 No. 14-10, GOST |
| Connections - Terminals | flexible cable with cable end, 0.2...2.5 mm² 24 AWG...14 AWG), solid cable with cable end, 0.2...2.5 mm² 24 AWG...14 AWG), screw connectors |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0068904269 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.8 kg CO2 eq., 0.8427298224 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Device Short Name | SSL |
| Flame Retardance | V0 conforming to UL 94 |
| Mounting Support | screw socket |
| Phase | 1 phase |
| Product Or Component Type | pre-assembled plug-in relay with socket |
| Response Time | 0.25 ms (turn-on)0.12 ms (turn-off) |
| Software Version | EIME v5.7.0.4 |
| Total Lifecycle Carbon Footprint | 18 kg CO2 eq. |
| Database Version | 2018-09 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards. |
| Functional-unit Unit | unité (unit) |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Recyclability Potential In % | 27 |
| Width Nominal | 6.2 mm |
| Package Weight(Lbs) | 27.000 g |
| Warranty (In Months) | 18 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 43.9052 |
| Customs Code | 8536410030 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-70 °C, -20-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 18.1414430835 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2018-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Ambient Air Temperature For Storage | -20-85 °C, -20-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2504008EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2504008EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | Harmony Solid State Relays |
| Product Or Component Type | pre-assembled plug-in relay with socket |
|---|
ETIM
| ETIM 8 | EC002055 |
|---|
| ETIM 9 | EC002055 |
|---|
Output Attributes
| Solid State Output Type | Mosfet output, DC switching |
|---|---|
| Output Voltage | 1...24 V DC |
| Output Switching Mode | DC switching |
|---|
Surge Protection And Filtering Attributes
| Surge Current | 9 A 10 ms |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 Months |
|---|
| Warranty | 18 Months |
|---|
Input Attributes
| Input Impedance | 2.67 kOhm |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
