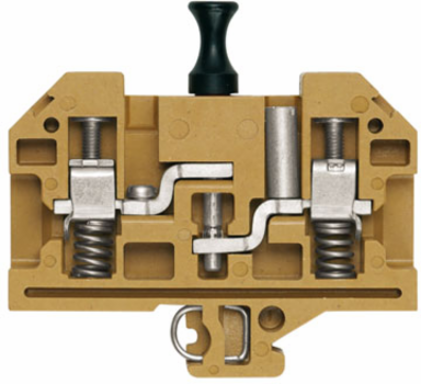

Weidmuller 0623320000 RSF 2

MPN: 0623320000
PPN: WDM-0623320000

$80.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

RSF 2

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CSA, EAC, UR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	11 mm
Height	77 mm
Depth	57.5 mm
Net weight	58.75 g

Width (inches)	0.433 inch
Height (inches)	3.031 inch
Depth (inches)	2.264 inch

Csa Rating Data

Certificate No. (CSA)	12000-351
Current size C (CSA)	30 A
Voltage size B (CSA)	300 V
Voltage size D (CSA)	600 V
Wire cross section min. (CSA)	14 AWG

Current size B (CSA)	30 A
Current size D (CSA)	5 A
Voltage size C (CSA)	300 V
Wire cross section max. (CSA)	8 AWG

Additional Technical Data

Explosion-tested version	No
Number of similar terminals	1
Type of mounting	Snap-on

Installation advice	Direct mounting
Open sides	right

Material Data

Material	KrG
UL 94 flammability rating	V-0, 5VA

Colour	medium yellow

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000902
eClass 9.0	27-14-11-26
eClass 10.0	27-14-11-26

ETIM 7.0	EC000902
eClass 9.1	27-14-11-26
UNSPSC	30-21-18-11

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

System Specifications

Version	Screw connection, Spacer, With sockets, for screwable cross-connection, with spring-loaded cable clamp, One end without connector
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 32
PE function	No

End cover plate required	Yes
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	130 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-60 °C

Rating Data

Rated cross-section	6 mm²
Rated current	41 A
Standards	IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x	1.31 W
Pollution severity	3

Rated voltage	500 V
Current at maximum wires	41 A
Volume resistance according to IEC 60947-7-x	0.78 mΩ
Rated impulse withstand voltage	6 kV

Conductors For Clamping (Rated Connection)

Blade size	1.0 x 5.5 mm
Clamping range, min.	0.75 mm²
Connection cross-section, stranded, max.	10 mm²
Connection direction	on side
Stripping length	12 mm
Tightening torque, min.	1.2 Nm
Type of connection	Screw connection
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	4 mm²
Wire connection cross-section, finely stranded, min.	1.5 mm²
Wire connection cross-section, solid core, min.	0.75 mm²

Clamping range, max.	16 mm²
Clamping screw	M 4
Connection cross-section, stranded, min.	0.5 mm²
Number of connections	2
Tightening torque, max.	2.4 Nm
Torque level with DMS electric screwdriver	4
Wire connection cross section, finely stranded, max.	10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, solid core, max.	16 mm²

Ul Rating Data

Certificate No. (UR)	E60693
Conductor size Factory wiring min. (UR)	14 AWG
Conductor size Field wiring min. (UR)	14 AWG
Current size C (UR)	25 A
Voltage size C (UR)	600 V
