Weidmuller 0197920000 SAKT E/35 2LD 60VAC
- MPN: 0197920000
- PPN: WDM-0197920000
CAD
$371.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

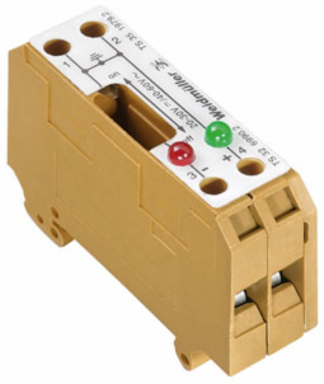

SAK Series, Test-disconnect terminal, Rated cross-section: 6 mm², Screw connection, medium yellow, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | CE, EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 16 mm |
|---|---|
| Height | 65 mm |
| Depth | 52.5 mm |
| Net weight | 61.54 g |
| Width (inches) | 0.63 inch |
|---|---|
| Height (inches) | 2.559 inch |
| Depth (inches) | 2.067 inch |
Additional Technical Data
| Installation advice | Direct mounting |
|---|---|
| Type of mounting | Snap-on |
| Open sides | right |
|---|
Material Data
| Material | KrG |
|---|---|
| UL 94 flammability rating | V-0, 5VA |
| Colour | medium yellow |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000902 |
|---|---|
| eClass 9.0 | 27-14-11-26 |
| eClass 10.0 | 27-14-11-26 |
| ETIM 7.0 | EC000902 |
|---|---|
| eClass 9.1 | 27-14-11-26 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | Screw connection, Special terminal longitudinal isolator, with LED, for screwable cross-connection |
|---|---|
| Number of potentials | 1 |
| Number of clamping points per level | 4 |
| Levels cross-connected internally | No |
| Rail | TS 35 |
| PE function | No |
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -60 °C |
Rating Data
| Rated cross-section | 6 mm² |
|---|---|
| Rated AC voltage | 60 V AC |
| Rated current | 27 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Pollution severity | 3 |
| Rated voltage | 60 V |
|---|---|
| Rated DC voltage | 30 V DC |
| Current at maximum wires | 27 A |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
Conductors For Clamping (Rated Connection)
| Blade size | 4.0 x 0.8 mm |
|---|---|
| Clamping range, min. | 0.5 mm² |
| Connection direction | on side |
| Number of connections | 2 |
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max. | 6 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Wire connection cross-section, solid core, min. | 0.5 mm² |
| Clamping range, max. | 10 mm² |
|---|---|
| Clamping screw | M 3.5 |
| Gauge to IEC 60947-1 | A5 |
| Stripping length | 12 mm |
| Wire connection cross section, finely stranded, max. | 6 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min. | 0.5 mm² |
| Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min. | 0.5 mm² |
| Wire connection cross-section, solid core, max. | 10 mm² |
