Weidmuller 1887210000 WTL 6/4 FF
- MPN: 1887210000
- PPN: WDM-1887210000
CAD
$15.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

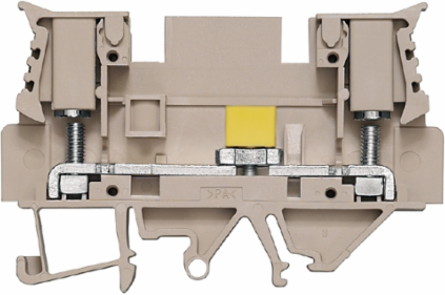

Test-disconnect terminal, Screw connection, 6 mm², 800 V, 41 A, sliding, dark beige
Documentation & Downloads
Specifications
Approvals
- Approvals
- CCSAUS, CE, cURus, EAC, KEMAKEUR
- UL File Number Search
- E60693
ROHSConform
Dimensions And Weights
- Width
- 11 mm
- Height
- 76.5 mm
- Depth
- 52 mm
- Depth including DIN rail
- 53.4 mm
Width (inches)0.433 inch
Height (inches)3.012 inch
Depth (inches)2.047 inch
Net weight40.9 g
Dimensions
- TS 35 offset
- 38.5 mm
Csa Rating Data
- Certificate number (cCSAus)
- 227775-1609344
- Current size C (cCSAus)
- 40 A
- Voltage size B (cCSAus)
- 600 V
- Voltage size D (cCSAus)
- 600 V
- Wire cross section min. (cCSAusX)
- 26 AWG
Current size B (cCSAus)40 A
Current size D (cCSAus)40 A
Voltage size C (cCSAus)600 V
Wire cross section max. (cCSAusX)10 AWG
Additional Technical Data
- Type of mounting
- Snap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000902
- eClass 9.0
- 27-14-11-26
- eClass 10.0
- 27-14-11-26
ETIM 7.0EC000902
eClass 9.127-14-11-26
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Spacer, for plug-in cross-connector, for screwable cross-connection, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Disconnect Terminals
- Cross-disconnect
- without
- Slitting
- sliding
- Torque min. screw separator
- 0.5 Nm
Integral test socketNo
Torque max. screw separator1 Nm
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Rating Data
- Rated cross-section
- 6 mm²
- Rated current
- 41 A
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
- Rated impulse withstand voltage
- 8 kV
Rated voltage800 V
Current at maximum wires41 A
Power loss in accordance with IEC 60947-7-x1.31 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.8 x 5.5 mm
- Clamping range, min.
- 0.5 mm²
- Connection direction
- on side
- Tightening torque, max.
- 2.4 Nm
- Type of connection
- Screw connection
- Wire connection cross-section, finely stranded, min.
- 1.5 mm²
Clamping range, max.6 mm²
Clamping screwM 4
Number of connections2
Tightening torque, min.1.2 Nm
Wire connection cross section, finely stranded, max.6 mm²
Ul Rating Data
- Certificate No. (cURus)
- E60693
- Conductor size Factory wiring min. (cURus)
- 26 AWG
- Conductor size Field wiring min. (cURus)
- 26 AWG
- Current size C (cURus)
- 30 A
- Voltage size C (cURus)
- 600 V
Conductor size Factory wiring max. (cURus)10 AWG
Conductor size Field wiring max. (cURus)10 AWG
Current size B (cURus)30 A
Voltage size B (cURus)600 V
