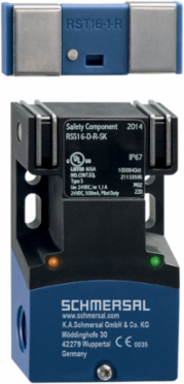

Schmersal 103004341 RSS 16 Electronic Safety Sensor, 24 VDC, 208 g, IP65/IP67, RFID Technology
Schmersal 103004341 RSS 16 Electronic Safety Sensor, 24 VDC, 208 g, IP65/IP67, RFID Technology
- MPN: 103004341
- PPN: SCM-103004341
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$393.51/ EA
Features
- Universal coding with RFID technology
- Screw connection
- Series-wiring unlimited
- with latching
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering
- 3 different directions of actuation
- Door stop with magnetic latching
- Connection terminal or plug connection
- Suitable for series-wiring
- Repeated individual coding with RFID technology
Specifications
Electrical data - Safety digital inputs
- Current consumption of the safety inputs
- 5 mA
Electrical data
- Operating voltage
- 24 VDC -15 % / +10 %
- No-load supply current I
- 100 mA
- Operating current
- 2,100 mA
- Time to readiness, maximum
- 2,000 ms
Operating current, minimum0.5 mA
Rated operating voltage24 VDC
Required rated short-circuit current100 A
Switching frequency, maximum1 Hz

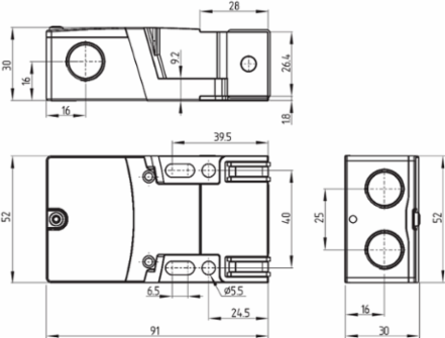

Mechanical data - Dimensions
- Length of sensor
- 91 mm
- Height of sensor
- 30 mm
Width of sensor52 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
General data - Features
- Latching magnet
- Yes
- Short circuit detection
- Yes
- Series-wiring
- Yes
- Cascadable
- Yes
- Number of LEDs
- 2
- Number of fail-safe digital outputs
- 2
Diagnostic outputYes
Cross-circuit detectionYes
Safety functionsYes
Integral system diagnostics, statusYes
Number of semi-conductor outputs with signaling function1
General data
- Standards
- EN IEC 60947-5-3
- Coding level according to EN ISO 14119
- Low
- Housing construction form
- Block
- Sensor topology
- Sensor for series wiring
- Active area
- Glass-fibre, reinforced thermoplastic
- Reaction time, maximum
- 100 ms
CodingUniversal coding
Working principleRFID
Installation conditions (mechanical)not flush
Enclosure materialPlastic, glass-fibre reinforced thermoplastic, self-extinguishing
Gross weight208 g
Duration of risk, maximum200 ms
Safety classification
- Standards
- EN ISO 13849-1 | EN IEC 61508
- Category
- 4
- PFD value
- 1.50 x 10⁻⁵
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value6.30 x 10⁻¹¹ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - Safety digital outputs
- Rated operating current (safety outputs)
- 1,000 mA
- Design of control elements
- p-type
- Leakage current I
- 0.5 mA
- Current, Utilisation category DC-12
- 1 A
- Current, Utilisation category DC-13
- 1 A
Output current, (fail-safe output), maximum1 A
Voltage drop U1 V
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Ambient conditions
- Degree of protection
- IP65 | IP67
- Storage and transport temperature, minimum
- -25 °C
- Relative humidity, maximum
- 93 %
- Restistance to shock
- 30 g / 11 ms
Ambient temperature-25 ... +70 °C
Storage and transport temperature, maximum+85 °C
Note (Relative humidity)non-condensing | non-icing
Permissible installation altitude above sea level, maximum2,000 m
Mechanical data - Connection technique
- Termination
- Screw terminals

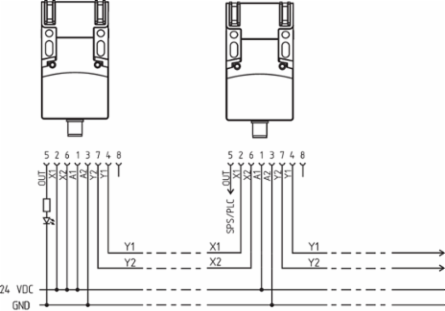

- Note (series-wiring)

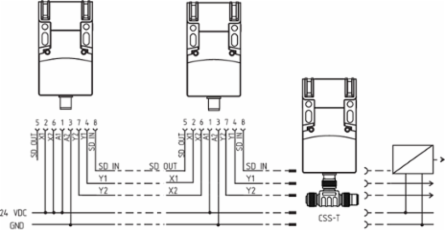

- Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Note (length of the sensor chain)Cable length and cross-section change the voltage drop dependiing on the output current
Cable entry4 x M16 x 1,5
Electrical data - Diagnostic outputs
- Operating current
- 50 mA
- Voltage drop U
- 2 V
- Current, Utilisation category DC-12
- 0.05 A
- Current, Utilisation category DC-13
- 0.05 A
Design of control elementsp-type
Voltage, Utilisation category DC-1224 VDC
Voltage, Utilisation category DC-1324 VDC
Mechanical data - Switching distances according EN IEC 60947-5-3
- Switch distance, typical
- 15 mm
- Assured switching distance "OFF" S
- 30 mm
Assured switching distance "ON" S5 mm
Mechanical data
- Actuating panels
- front side | rear | from head
- Hysteresis (Switching distance), maximum
- 2 mm
- Mounting
- 2 x M5, Cylinder head screw
Active arealateral | front side | cover-side
Repeat accuracy R0.5 mm
Tightening torque of the fixing screws2 Nm
Accessory
- Recommendation (actuator)
- RST16-1-R
Recommended safety switchgearPROTECT PSC1 | SRB-E-301ST | SRB-E-201LC
Approvals - Standards
- Certificates
- TÜV | cULus | FCC | IC | UKCA
Electrical data - Electromagnetic compatibility (EMC)
- Interfering radiation
- IEC 61000-6-4
EMC ratingIEC 60947-3
Status indication
- Note (LED switching conditions display)
- Multi-coloured LED: Green, Red | LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault
