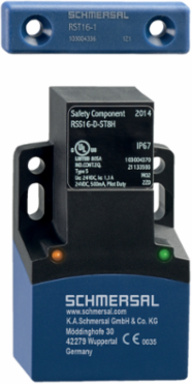

Schmersal 103004372 RSS16-D-CC Electronic Safety Sensor, 52 mm Width, RFID Technology, IP65/IP67
- MPN: 103004372
- PPN: SCM-103004372
CAD
$339.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RSS16-D-CC Electronic Safety Sensor, 52 mm Width, RFID Technology, IP65/IP67
Features
- Universal coding with RFID technology
- Spring pulley connection
- Series-wiring unlimited
- without latching
- Thermoplastic enclosure
- RFID-technology for needs-based protection against tampering
- 3 different directions of actuation
- Door stop with magnetic latching
- Connection terminal or plug connection
- Suitable for series-wiring
- Repeated individual coding with RFID technology
Documentation & Downloads
Specifications
Electrical data - Safety digital inputs
| Current consumption of the safety inputs | 5 mA |
|---|
Electrical data
| Operating voltage | 24 VDC -15 % / +10 % |
|---|---|
| No-load supply current I | 100 mA |
| Operating current | 2,100 mA |
| Time to readiness, maximum | 2,000 ms |
| Operating current, minimum | 0.5 mA |
|---|---|
| Rated operating voltage | 24 VDC |
| Required rated short-circuit current | 100 A |
| Switching frequency, maximum | 1 Hz |

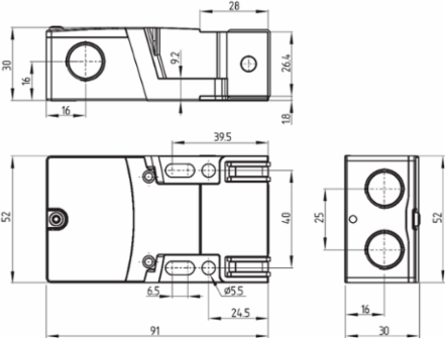

Mechanical data - Dimensions
| Length of sensor | 91 mm |
|---|---|
| Height of sensor | 30 mm |
| Width of sensor | 52 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 32 VDC |
|---|---|
| Overvoltage category | III |
| Rated impulse withstand voltage U | 0.8 kV |
|---|---|
| Degree of pollution | 3 |
Scope of delivery
| Scope of delivery | Actuator must be ordered separately. |
|---|
General data - Features
| Diagnostic output | Yes |
|---|---|
| Cross-circuit detection | Yes |
| Safety functions | Yes |
| Integral system diagnostics, status | Yes |
| Number of semi-conductor outputs with signaling function | 1 |
| Short circuit detection | Yes |
|---|---|
| Series-wiring | Yes |
| Cascadable | Yes |
| Number of LEDs | 2 |
| Number of fail-safe digital outputs | 2 |
General data
| Standards | EN IEC 60947-5-3 |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Housing construction form | Block |
| Sensor topology | Sensor for series wiring |
| Active area | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 100 ms |
| Coding | Universal coding |
|---|---|
| Working principle | RFID |
| Installation conditions (mechanical) | not flush |
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 154 g |
| Duration of risk, maximum | 200 ms |
Safety classification
| Standards | EN ISO 13849-1 | EN IEC 61508 |
|---|---|
| Category | 4 |
| PFD value | 1.50 x 10⁻⁵ |
| Mission time | 20 Year(s) |
| Performance Level, up to | e |
|---|---|
| PFH value | 6.30 x 10⁻¹¹ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
Electrical data - Safety digital outputs
| Rated operating current (safety outputs) | 1,000 mA |
|---|---|
| Design of control elements | p-type |
| Leakage current I | 0.5 mA |
| Current, Utilisation category DC-12 | 1 A |
| Current, Utilisation category DC-13 | 1 A |
| Output current, (fail-safe output), maximum | 1 A |
|---|---|
| Voltage drop U | 1 V |
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
Ambient conditions
| Degree of protection | IP65 | IP67 |
|---|---|
| Storage and transport temperature, minimum | -25 °C |
| Relative humidity, maximum | 93 % |
| Restistance to shock | 30 g / 11 ms |
| Ambient temperature | -25 ... +70 °C |
|---|---|
| Storage and transport temperature, maximum | +85 °C |
| Note (Relative humidity) | non-condensing | non-icing |
| Permissible installation altitude above sea level, maximum | 2,000 m |

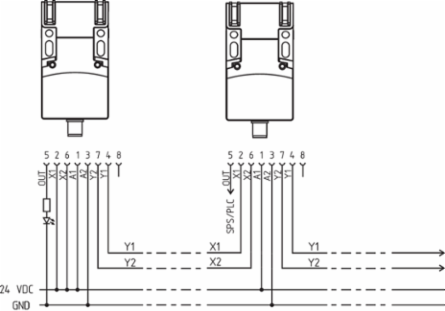

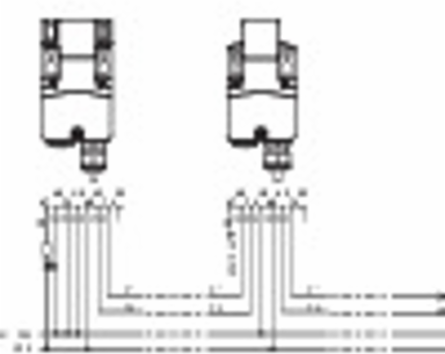

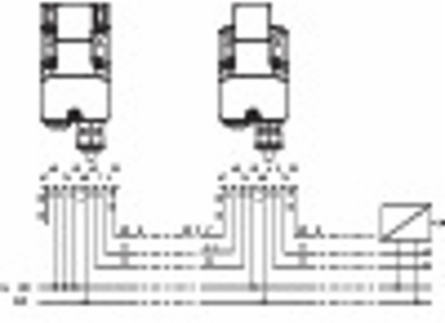

Mechanical data - Connection technique
| Termination | Spring pulley connection |
|---|---|
| Note (series-wiring) | Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD |
| Note (length of the sensor chain) | Cable length and cross-section change the voltage drop dependiing on the output current |
|---|---|
| Cable entry | 4 x M16 x 1,5 |
Electrical data - Diagnostic outputs
| Operating current | 50 mA |
|---|---|
| Voltage drop U | 2 V |
| Current, Utilisation category DC-12 | 0.05 A |
| Current, Utilisation category DC-13 | 0.05 A |
| Design of control elements | p-type |
|---|---|
| Voltage, Utilisation category DC-12 | 24 VDC |
| Voltage, Utilisation category DC-13 | 24 VDC |
Mechanical data - Switching distances according EN IEC 60947-5-3
| Switch distance, typical | 15 mm |
|---|---|
| Assured switching distance "OFF" S | 30 mm |
| Assured switching distance "ON" S | 12 mm |
|---|
Mechanical data
| Actuating panels | front side | rear | from head |
|---|---|
| Hysteresis (Switching distance), maximum | 2 mm |
| Mounting | 2 x M5, Cylinder head screw |
| Active area | lateral | front side | cover-side |
|---|---|
| Repeat accuracy R | 0.5 mm |
| Tightening torque of the fixing screws | 2 Nm |
Accessory
| Recommendation (actuator) | RST16-1 |
|---|
| Recommended safety switchgear | PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC |
|---|
Approvals - Standards
| Certificates | TÜV | cULus | FCC | IC | UKCA |
|---|
Electrical data - Electromagnetic compatibility (EMC)
| Interfering radiation | IEC 61000-6-4 |
|---|
| EMC rating | IEC 60947-3 |
|---|
Status indication
| Note (LED switching conditions display) | Multi-coloured LED: Green, Red | LED yellow: Operating condition | LED green: Supply voltage | LED red: Fault |
|---|
