Schmersal 103004638 RSS260 Safety Sensor with RFID Technology, IP65/IP67, 40 mm Width, Thermoplastic Enclosure
- MPN: 103004638
- PPN: SCM-103004638
CAD
$464.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

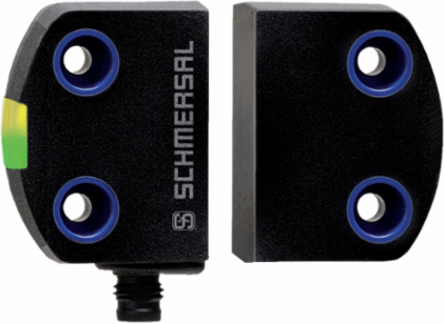

RSS260 Safety Sensor with RFID Technology, IP65/IP67, 40 mm Width, Thermoplastic Enclosure
Features
- Universal coding with RFID technology
- Safety sensor, electronic
- Thermoplastic enclosure
- Small body, high switching distance
- Protection class IP65 / IP67
Documentation & Downloads
Specifications
Electrical data
- Time to readiness, maximum
- 2,000 ms
Switching frequency, maximum1 Hz
Electrical data - AS-Interface specification
- AS-i Specification
- Safety-Slave
- AS-i Profile
- S-0.B.F.E
- AS-i, ID-Code
- 0xB
- AS-i, ID-Code2
- 0xE
- AS-i Input, Channel 2
- Data bits DI 2 / DI 3 = dynamic code transmission
- AS-i Parameter bits, P0
- Actuator in
- AS-i Parameter bits, P2
- No function
- Note (AS-i Parameter bits)
- Set the parameter outputs to "1111" (0xF) | FID: periphery error
- Note (AS-i Input module address)
- Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
AS-i VersionV 2.1
AS-i, IO-Code0x0
AS-i, ID-Code10xF
AS-i Input, Channel 1Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Outputs, DO 0 … DO 3No Function
AS-i Parameter bits, P1Enabling inhibit (tamper protection time) active (FID))
AS-i Parameter bits, P3Internal device error (FID)
AS-i Input module address0

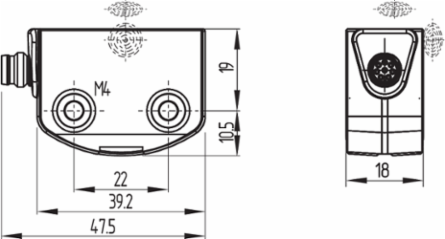

Mechanical data - Dimensions
- Length of sensor
- 18 mm
- Height of sensor
- 29.5 mm
Width of sensor40 mm
Pin assignment
- PIN 1
- AS-Interface +
- PIN 3
- AS-Interface -
PIN 2n.c. (≤ 30 VDC)
PIN 4n.c. (≤ 30 VDC)
Ambient conditions - Insulation values
- Rated insulation voltage U
- 32 VDC
- Overvoltage category
- III
Rated impulse withstand voltage U0.8 kV
Degree of pollution3
Scope of delivery
- Scope of delivery
- Actuator must be ordered separately.
Note (scope of delivery, number and type)Actuator incl. mounting plate
General data - Features
- Coding
- Yes
- Integral system diagnostics, status
- Yes
Safety functionsYes
Number of actuating directions2
General data
- Standards
- EN IEC 62026-2 | EN ISO 13849-1 | EN ISO 14119 | EN IEC 60947-5-3 | EN IEC 61508
- Coding level according to EN ISO 14119
- Low
- Enclosure material
- Thermoplastic hotmelt
- Reaction time, maximum
- 100 ms
CodingUniversal coding
Working principleRFID
Gross weight60 g
Duration of risk, maximum200 ms
Safety classification
- Standards
- EN IEC 61508
- Category
- 4
- PFD value
- 6.89 x 10⁻⁵
- Mission time
- 20 Year(s)
Performance Level, up toe
PFH value3.93 x 10⁻¹⁰ /h
Safety Integrity Level (SIL), suitable for applications in3
Electrical data - AS Interface
- Rated operating voltage
- 18 ... 31.6 VDC (Protection against polarity reversal)
AS-i Current consumption, maximum100 mA
Ambient conditions
- Degree of protection
- IP65 | IP67
- Storage and transport temperature, minimum
- -25 °C
- Resistance to vibrations
- 10 … 55 Hz, amplitude 1 mm
- Protection class
- III
Ambient temperature-25 ... +60 °C
Storage and transport temperature, maximum+85 °C
Restistance to shock30 g / 11 ms
Mechanical data - Connection technique
- Termination
- Connector M8, 4-pole, A-coded
Mechanical data - Switching distances according EN IEC 60947-5-3
- Switching distance S
- 12 mm | 9 mm (in case of approach from side)
- Assured switching distance "OFF", frontal
- 18 mm
- Assured switching distance "OFF", lateral
- 15 mm
Assured switching distance "ON", frontal10 mm
Assured switching distance "ON", lateral6 mm
Mechanical data
- Hysteresis (Switching distance), maximum
- 2 mm
Repeat accuracy R0.5 mm
Accessory
- Recommendation (actuator)
- RST260-1
Approvals - Standards
- Certificates
- TÜV | cULus | ASi-SaW | FCC
Status indication
- Note (LED switching conditions display)
- (1) green/red LED (AS-i Duo LED):Supply voltage / communication error / slave address = 0 / periphery error detected / Tamper protection time active | (2) yellow LED: device condition (enabling status) / hysteresis signal / device error
