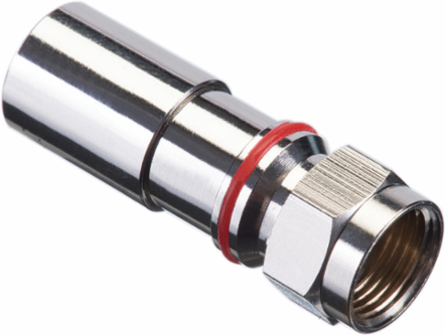

Ideal Industries 92-610 RTQ™ RG-59 F Compression Connector - 50 pk, 7/16 Inch Nut Diameter, WeatherProof™
Ideal Industries 92-610 RTQ™ RG-59 F Compression Connector - 50 pk, 7/16 Inch Nut Diameter, WeatherProof™
- MPN: 92-610
- PPN: IDL-92-610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$73.63/ EA
Description
The IDEAL RTQ™ series of F connectors offers a single connector solution to cover a range of coax types. A patented compression sleeve design allows Regular (dual), Tri, and Quad shield cables all to be terminated within a single connector. All RTQ connectors have an all brass exterior and an inner O-ring to provide a robust, weather proof connection suitable for just about any application - indoors or outdoors.RG 59/6/6Q sized connectors are available for use in applications and installations from 5MHz to 3GHz, including CATV, satellite, HDTV and other A/V based applications. An internal sealing compression sleeve prevents moisture from entering the backside of the connector and aids in cable retention.Plenum sized cable specific versions are available and feature a fitted mandrel for the smaller diameter plenum cable dielectric and thinner flame retardant jacket material.
Features
- Accepts RG-59/RG-59 Quad coax cables
- RTQ™ design allows Regular/Tri/Quad shield cables to work in a single connector – no need to carry cable specific connectors
- Designed for use in cable and satellite TV installations
- WeatherProof™ - internal O-ring and patented back seal prevent moisture migration for indoor/outdoor use
- Industry standard 21mm compressed length – works with non-IDEAL compression tools
- All brass, with nickel plated bodies
- Designed for optimal performance on 75Ω coaxial cables
- >40 pounds cable retention on all models
- 7/16” nut diameter with 3/8-32 thread
Specifications
Specifications
- Connector Model
- 59FRTQ
- Dielectric diameter range
- .135” - .148”
- Recommended cable prep/stripping tools
- 45-605 PrepPRO™; 45-526
- Return loss
- >30dB up to 3 GHz
Center conductor rangeAll
Outer jacket diameter range.220” - .270”
Recommended compression tools30-793 OmniSeal™ PRO XL; 33-632 Linear X®3
Frequency range0 MHz to 3 GHz
