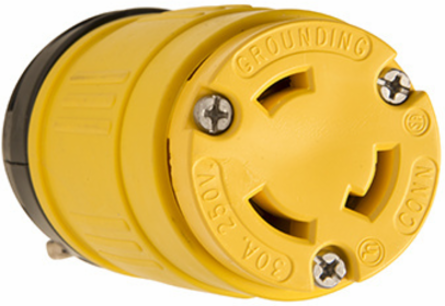

Pass & Seymour 2948 Yellow Rubber Dust-Tight Locking Connector, 30A 250V, NEMA L6-30, 4.04 Inch Length
- MPN: 2948
- UPC: 785007033632
- PPN: P-S-2948
CAD
$111.41
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Yellow Rubber Dust-Tight Locking Connector, 30A 250V, NEMA L6-30, 4.04 Inch Length
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
- Two Screw cable clamp secures wire and provides superior strain relief
- Quick lead assembly screws aid in a fast installation
- Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
- Keyed body and cover for easy assembly and alignment
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
- Length
- 4.04 in
- Special Features
- Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
- Country of Origin
- United States
- Amperage
- 30.0 A
- Standard
- UL Listed
- Standard
- CSA Listed
- Warranty Type
- 1-Year
- Connector Style
- Locking
- Number of Poles
- Double Pole
- NEMA Configuration Code
- L6-30R
- Terminal Accommodation
- #14 AWG - #10 AWG
- Product Line
- Pass & Seymour
Width2.3 in
FlangedNo
TypeConnector
Voltage250.0 V
Number of Wires3.0
Number of Phases1.0
Indoor/OutdoorIndoor
FeaturesDust Resistant
Application SectorIndustrial
Environmental ConditionsMoisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
ColorYellow
