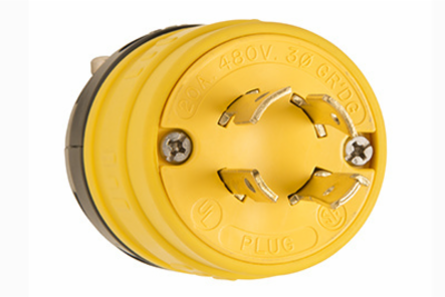

Pass & Seymour 2676 Rubber Dust-Tight Locking Plug, 20 Amp, 3.05 Inch Length, Yellow
Pass & Seymour 2676 Rubber Dust-Tight Locking Plug, 20 Amp, 3.05 Inch Length, Yellow
- MPN: 2676
- UPC: 785007032918
- PPN: P-S-2676
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$82.89/ EA
Description
Locking Dust-Tight Rubber Plug, 20amp 3480, NEMA Configuration L16-20
Features
- Thermoplastic elastomer (TPV) construction stands up to impacts,oils, chemicals, heat, and weather
- Two Screw cable clamp secures wire and provides superior strain relief
- Quick lead assembly screws aid in a fast installation
- Industrial strength, brass blades and contacts resist heat rise while providing excellent conductivity
- Keyed body and cover for easy assembly and alignment
- For covering patents, see www.legrand.us/patents.
Specifications
Specifications
- Length
- 3.05 in
- Width
- 2.14 in
- Type
- Plug
- Type
- Locking
- Voltage
- 480.0 V
- Standard
- UL Listed
- Number of Wires
- 4.0
- Number of Phases
- 3.0
- Indoor/Outdoor
- Indoor
- Connector Style
- Locking
- NEMA Configuration Code
- L16-20P
- Terminal Accommodation
- #14 AWG - #10 AWG
- Product Line
- Pass & Seymour
Special FeaturesRated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
Country of OriginUnited States
FlangedNo
Amperage20.0 A
FeaturesLocking
NEMA RatingL16-20R
StandardCSA Listed
Warranty Type1-Year
Number of Poles3-Way
Application SectorIndustrial
Environmental ConditionsMoisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
ColorYellow
