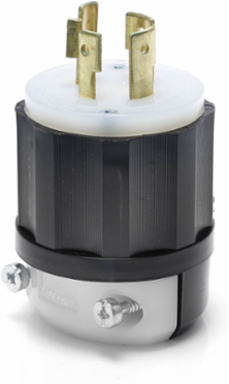

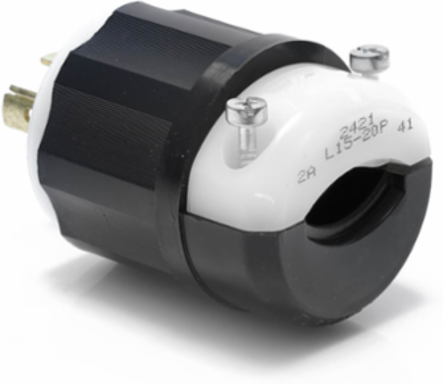

Leviton 2421 Locking Plug, 20 Amp, 250 Volt, NEMA L15-20P, Impact Modified Nylon Construction
- MPN: 2421
- UPC: 078477808122
- PPN: LEV-2421
CAD
$31.36
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 250 Volt 3-Phase, NEMA L15-20P, 3P, 4W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Documentation & Downloads
Specifications
Additional
- Voltage
- 250 VAC
- Phase
- 3-Phase
- Poles
- 3
- Torque Range
- 10-14 in-lbs
- Wire Gauge
- 14-10 AWG
- Dielectric Voltage
- Withstands 2000 V per UL498
- Clamp Insert Material
- Nylon
- Back Cover Material
- Thermoplastic
- Assembly Screws Material
- Steel, Zinc Plated
- Body Material
- Impact Modified Nylon
- Terminal Accommodation
- 18-10 AWG
- Flammability Rating
- Rated HB or better UL94
- Current Interrupting
- Certified for full rated current
- Temperature Rise
- Max 30°C after 250 cycles OL at 200% rated current
- Color
- Black-White
- Brand
- Black and White
Amperage20 A
Horsepower Rating3 HP
Wire4
Cord Range0.560 to 0.775 in
Operating Temperature-40°C to 60°C
EnvironmentDry
Wire Module MaterialNylon
Blades/Contacts MaterialSolid Brass
Terminal Screws MaterialBrass
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
ComplianceRoHS, ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Fed Spec WC-596, UL498

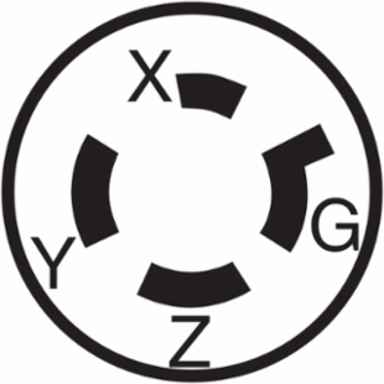

NEMAL15-20P, WD-6
GroundingYes
Country of OriginMexico
Device TypeLocking Plug
WarrantyLimited Lifetime
