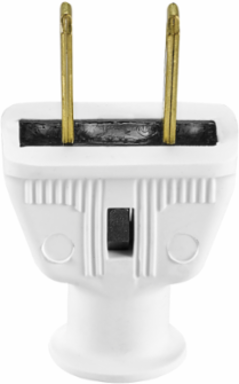

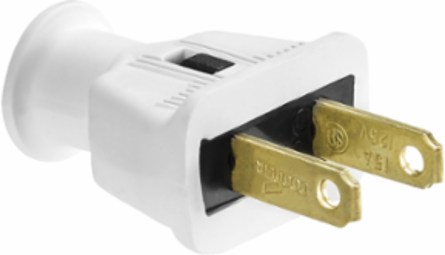

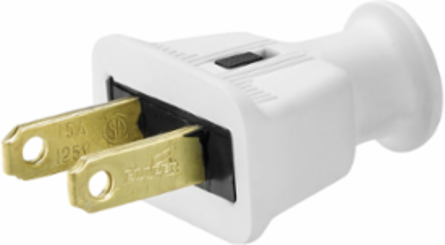

Cooper Wiring Devices 183W-BOX Straight Blade Plug, 15A, 125V, NEMA 1-15P, Non-Polarized, White
- MPN: 183W-BOX
- UPC: 032664215100
- PPN: COW-183W-BOX
CAD
$2.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton straight blade plug , #18-10 AWG, 15A, Commercial, 125V, Back wire, White, Brass, Thermoplastic, 1-15P, Two-pole, two-wire, non grounding, Screw, 0.328" diameter, Thermoplastic rubber, ED Box
Documentation & Downloads
Specifications
Key Specifications
- Amperage Rating
- 15A
- Torque Rating
- 14 lbf-inch
- Cord Range
- 0.328" diameter
- Number of Wires
- 2
- NEMA Configuration
- 1-15P
- Face/Body Material
- Thermoplastic
- Color
- White
- Device Grade
- Standard grade
- Wiring Method
- Back wire
Voltage Rating125V
Allowable Wire Size#18-10 AWG
Number of PolesTwo-pole
Connection TypeScrew
MaterialThermoplastic rubber
Contact MaterialBrass
Special FeaturesNon-polarized
ApplicationCommercial
Receptacle TypeTwo-pole, two-wire, non grounding
