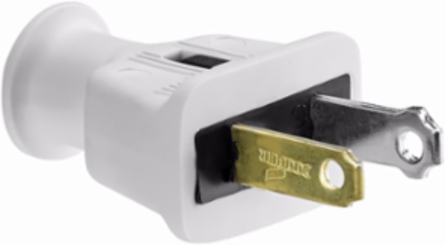

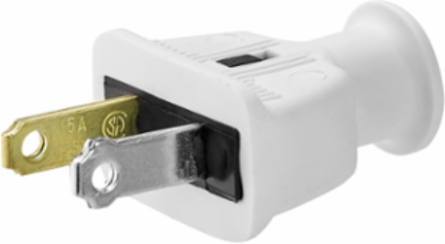

Eaton 183-6W-BOX Eaton straight blade plug — Special Features: Polarized, Features: Polarized, Color: White, NEMA Configuration: 1-15P, Type: Rubber plug, Allowable Wire Size: #18-10 AWG, Cord Range: 0.328" diameter, Face/Body Material: Thermoplastic, Device Grade: Standard grade, Packaging Type: ED Box
- MPN: 183-6W-BOX
- UPC: 032664215407
- PPN: COW-183-6W-BOX
CAD
$2.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton straight blade plug , #18-10 AWG, 15A, Commercial, 125V, Back wire, White, Brass, Thermoplastic, 1-15P, Two-pole, two-wire, non grounding, Screw, 0.328" diameter, Thermoplastic rubber, ED Box, polarized
Features
- Polarized
Specifications
Key Specifications
| Length | 0.73 in |
|---|---|
| Width | 1.17 in |
| Product Type | Straight blade plug |
| Type | Rubber plug |
| Voltage Rating | 125V |
| Application | Commercial |
| Wiring Method | Back wire |
| Number Of Poles | Two-pole |
| Cord Range | 0.328" diameter |
| Color | White |
| Allowable Wire Size | #18-10 AWG |
| Torque Rating | 14 lbf-inch |
| Face/Body Material | Thermoplastic |
| Product Series | Commercial And Residential Grade Vinyl Straight Blade Devices |
| Height | 1.98 in |
|---|---|
| Weight | 0.038 lbs |
| Device Type | Plug |
| Amperage Rating | 15A |
| Contact Material | Brass |
| Device Grade | Standard grade |
| Number Of Wires | 2 |
| Style Type | Straight body |
| Material | Thermoplastic rubber |
| Connection Type | Screw |
| NEMA Configuration | 1-15P |
| Design Type | Straight blade |
| Receptacle Type | Two-pole, two-wire, non grounding |
