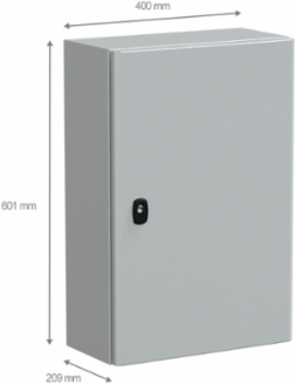

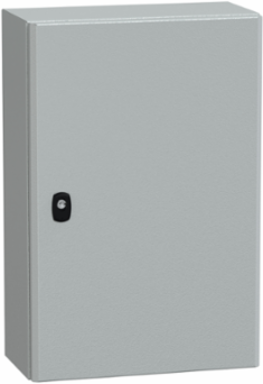

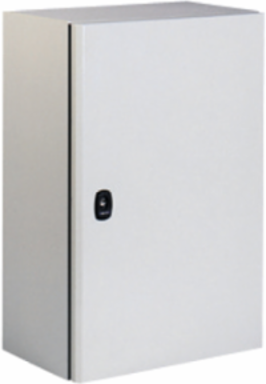

Schneider Electric NSYS3D6420 Wall Mounted Steel Enclosure 600x400x200mm, IP66, IK10

MPN: NSYS3D6420
PPN: SCH-NSYS3D6420
UNSPSC: 39121324

$250.49

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

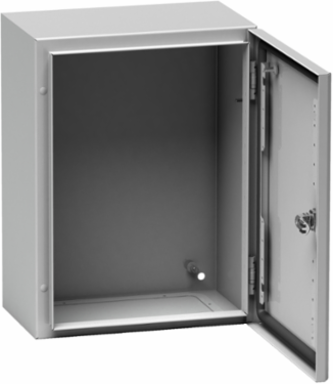

Spacial S3D wall mounted steel enclosure with plain door. 600 x 400 x 200 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK10, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.

Features

Quality and aesthetics
Easy to equip and easy to maintain
Earthing studs included
Large choice of dimensions, models and accessories

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France, United States

Weight	10552 g

Physical Attributes

Enclosure Nominal Height	600 mm, 600 mm
Color	Gray RAL 7035)

Enclosure Nominal Width	400 mm, 400 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 body, 1 door, 1 lock, 1 cable gland plate
Carbon Footprint Of The Distribution Phase A4	20.94912495748866, 21 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	2.078923857192426, 2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2025-07-09
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Door Type	Solid
Lock Type	3 points lock, 3 mm double-bar
Mounting Plate Description	without mounting plate
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Or Component Type	compact enclosure
Removable Parts	door by hingescable gland plate by screws
Software Version	v6.1
Sustainable Packaging	No
Type Of Gland Plate	standard
Database Version	2023-02
Nbr. Of Units In Pkg.	1
Silicone Free	Yes
Functional Unit Description	Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional Unit Unit	Unit
Recyclability Potential In %	98

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Certificate Agency	GL, UL, DNV, BV, cUL
Carbon Footprint Of The End Of Life Phase C1 To C4	25 kg CO2 eq., 24.85897300939736
Carbon Footprint Of The Manufacturing Phase A1 To A3	52 kg CO2 eq., 51.52116415915338
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Door Opening Side	reversible 120 °)
Energy Efficiency Optimized	False
Material	steel
Number Of Doors	front face 1
Product Name	PanelSeT S3D
Range	PanelSeT
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	99 kg CO2 eq.
Locking Description	3 points lock, 3 mm double-bar
Data Source	extrapolated product
Customs Code	9403200090
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Environmental Disclosure	ENVPEP1001004EN
Ip Degree Of Protection	IP66 IEC 60529
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1001004EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent external review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	99.40818598323182
Eu Rohs Directive	Compliant
Nema Degree Of Protection	NEMA 4X/13
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-10-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
