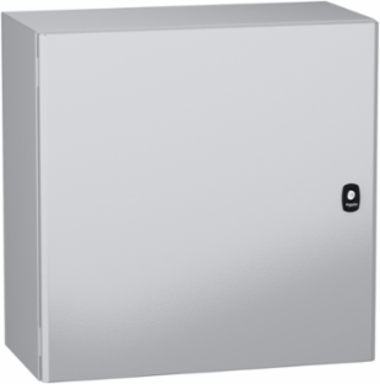

Schneider Electric NSYS3DC6640 Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chassis, 600x600x400mm, IP66, IK10
- MPN: NSYS3DC6640
- PPN: SCH-NSYS3DC6640
CAD
$474.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chassis, 600x600x400mm, IP66, IK10
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France
Physical Attributes
- Color
- Gray RAL 7035)
- Enclosure Nominal Width
- 600 mm
Enclosure Nominal Height600 mm
Important Information Attributes
- Device Composition
- 1 body, 1 door, 1 lock
- Local Publishable Date
- 2025-10-18
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Door Opening Side
- reversible 120 °)
- Lock Type
- 3 points lock, screw driver insert
- Mounting Plate Description
- without mounting plate
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- compact enclosure
- Removable Parts
- door by hinges
- Surface Finish
- epoxy-polyester powder
- Type Of Gland Plate
- without gland plate
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 9403200090
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Device Applicationmulti-purpose
Door TypeSolid
Materialsteel
Number Of Doorsfront face 1
Product NamePanelSeT S3DC
RangePanelSeT
ReturnabilityYes
Sustainable PackagingNo
Certificate AgencyUL
Package Weight(Lbs)20.000 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Nema Degree Of Protection
- NEMA 4X/13
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ip Degree Of ProtectionIP66 IEC 60529
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- compact enclosure
ETIM
- ETIM 8
- EC000747
ETIM 9EC000747
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
