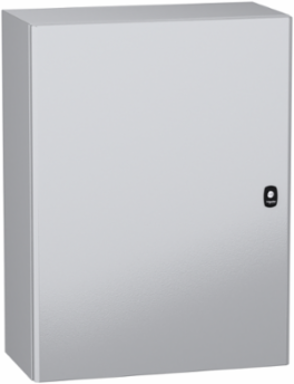

Schneider Electric NSYS3DC9830 Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chassis, 900x900x300mm, IP66, IK10
- MPN: NSYS3DC9830
- PPN: SCH-NSYS3DC9830
- UNSPSC: 39121324
CAD
$723.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chassis, 900x900x300mm, IP66, IK10
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|---|
| Enclosure Nominal Width | 800 mm |
| Enclosure Nominal Height | 900 mm |
|---|
Important Information Attributes
| Local Data Status | Publishable |
|---|---|
| Return Indicator | Y |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Device Application | multi-purpose |
| Door Opening Side | reversible 120 °) |
| Lock Type | 3 points lock, screw driver insert |
| Mounting Plate Description | without mounting plate |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | compact enclosure |
| Removable Parts | door by hinges |
| Surface Finish | epoxy-polyester powder |
| Type Of Gland Plate | without gland plate |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Local Publishable Date | 2025-09-23 |
|---|---|
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Composition | 1 body |
| Door Type | Solid |
| Material | steel |
| Number Of Doors | front face 1 |
| Product Name | PanelSeT S3DC |
| Range | PanelSeT |
| Returnability | Yes |
| Sustainable Packaging | No |
| Certificate Agency | UL |
| Customs Code | 9403200090 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Nema Degree Of Protection | NEMA 4X/13 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | compact enclosure |
|---|
ETIM
| ETIM 8 | EC000747 |
|---|---|
| ETIM 10 | EC000747 |
| ETIM 9 | EC000747 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
