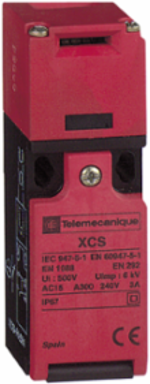

Telemecanique Sensors XCSPA191 Safety switch, Telemecanique Safety switches XCS, plastic XCSPA, 1 NC + 1 NO, snap action, 1 entry tapped Pg 11
- MPN: XCSPA191
- PPN: TES-XCSPA191
CAD
$118.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Safety switch, Telemecanique Safety switches XCS, plastic XCSPA, 1 NC + 1 NO, snap action, 1 entry tapped Pg 11
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Electrical Connection
- terminal 1 x 0.34...2 x 1.5 mm²
- Product Or Component Type
- safety switch
- Design
- compact
- Head Type
- key operated turret head
- Contact Operation
- snap action
- Number Of Poles
- 2
Cable Entry1 entry tapped Pg 11
Locking Options Descriptionwithout locking of actuator
Component NameXCSPA
Materialplastic
Contacts Type And Composition1 NC + 1 NO
Cable Outer Diameter7-10 mm
Complementary
- Height
- 94-94 mm
- Minimum Actuation Speed
- 0.01 m/s
- Head Material
- PA (polyamide)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
- Insulation
- double insulated
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
- Maximum Actuation Speed
- 0.5 m/s
- Safety Reliability Data
- B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
- Actuator Forcible Withdrawal Rtc
- 10 N
- Safety Level
- can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Short-Circuit Protection10 A cartridge fuse gG (gl)
[Ithe] Conventional Enclosed Thermal Current10 A
Net Weight0.11 kg
Maximum Operating Rate10 cyc/mn for maximum durability
Positive Opening Minimum Force15 N
Positive Openingwith NC contact
Mechanical Durability1000000 cycles
Body MaterialPA (polyamide)
Width30 mm
Depth30 mm
Environment
- Product Certifications
- UL || CSA
- Standards
- UL 508 || EN/IEC 60204-1 || EN 1088/ISO 14119 || EN/ISO 12100 || EN/IEC 60947-5-1 || CSA C22.2 No 14
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance10 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 conforming to EN/IEC 60529 || IP67 conforming to EN/IEC 60947-5-1
Electrical Shock Protection Classclass II EN/IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI110603EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
