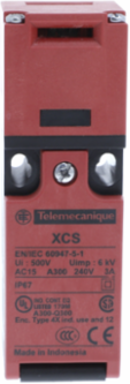

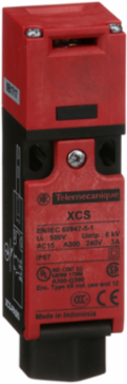

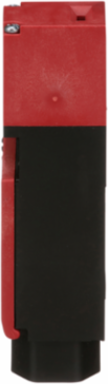

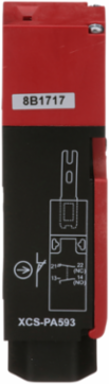

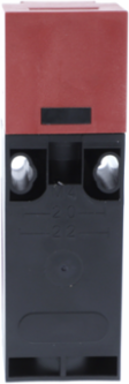

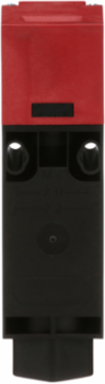

Telemecanique Sensors XCSPA593 Preventa XCS, safety switches, plastic safety switch, 1 NC and 1 NO, slow break, 1 entry tapped 0.5 inch NPT

MPN: XCSPA593
PPN: TES-XCSPA593
UNSPSC: 39122213

$122.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Preventa safety switches are for controlling the safe opening and interlocking of guards and covers to installations. Protection of operators by stopping the machine when the actuator attached to the machine guard is withdrawn from the head of the switch. Preventa switches with metal housings are designed for heavy duty industrial machines with quick rundown time (key operated switches XCSA, XCSB, XCSC) or with slow rundown time (Key operated switches with solenoid XCSLF, XCSE). Preventa switches with plastic housings are designed for light industrial machines with quick rundown time (key operated switches XCSMP, XCSPA, XCSTA) or with slow rundown time (key operated switches with solenoid XCSLE, XCSTE). As far as safety is concerned all dangerous machines in all sectors are involved. Preventa safety switches can be used in packaging, handling, robotics, machine tools, presses, and automotive sectors. It secures the machine and system operation with a key, only available to authorized operators.

Documentation & Downloads

Specifications

Key Specifications

Range Of Product	Telemecanique Safety switches XCS
Electrical Connection	terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
Product Or Component Type	safety switch
Design	compact
Head Type	key operated turret head
Contact Operation	slow-break, break before make

Cable Entry	1 entry tapped 1/2" NPT
Locking Options Description	without locking of actuator
Component Name	XCSPA
Material	plastic
Contacts Type And Composition	1 NC + 1 NO
Number Of Poles	2

Complementary

Height	107-107 mm
Minimum Actuation Speed	0.01 m/s
Head Material	PA (polyamide)
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-5-1
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 500 VEN/IEC 60947-1 \|\| 300 VCSA C22.2 No 14
Insulation	double insulated
[Ie] Rated Operational Current	6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 \|\| 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 \|\| 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 \|\| 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Maximum Actuation Speed	0.5 m/s
Safety Reliability Data	B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Actuator Forcible Withdrawal Rtc	10 N
Safety Level	can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508

Short-Circuit Protection	10 A cartridge fuse gG (gl)
[Ithe] Conventional Enclosed Thermal Current	10 A
Net Weight	0.11 kg
Maximum Operating Rate	10 cyc/mn for maximum durability
Positive Opening Minimum Force	15 N
Positive Opening	with NC contact
Mechanical Durability	1000000 cycles
Body Material	PA (polyamide)
Width	30 mm
Depth	30 mm

Environment

Product Certifications	CSA \|\| UL
Standards	EN/ISO 12100 \|\| UL 508 \|\| EN/IEC 60204-1 \|\| EN 1088/ISO 14119 \|\| EN/IEC 60947-5-1 \|\| CSA C22.2 No 14
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Ambient Air Temperature For Operation	-25-70 °C
Shock Resistance	10 gn 11 ms IEC 60068-2-27
Ip Degree Of Protection	IP67 EN/IEC 60529 and EN/IEC 60947-5-1
Electrical Shock Protection Class	class II EN/IEC 61140

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110606EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
