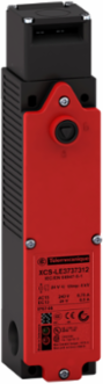

Telemecanique Sensors XCSLE2525312 Safety switch, Telemecanique Safety switches XCS, plastic XCSLE, 2NC+2 NO, slow break, 3 entries tapped M20, 24 V
Telemecanique Sensors XCSLE2525312 Safety switch, Telemecanique Safety switches XCS, plastic XCSLE, 2NC+2 NO, slow break, 3 entries tapped M20, 24 V
- MPN: XCSLE2525312
- PPN: TES-XCSLE2525312
- UNSPSC: 39122213
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$406.95/ EA
Description
This XCSLE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a robust red coated slim polyamide body with 3 x M20 cable gland entries, allowing for flexible installation. It has 1 normally open and 1 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally open and 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 500 000. Its IP66 / IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Specifications
Environment
- Product Certifications
- TÜV || UL || CSA
- Standards
- EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 62061 || UL 508 || EN/ISO 13849-1 || EN/IEC 60947-5-1 || EN 1088/ISO 14119
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-60 °C
Shock Resistance10 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP66 EN/IEC 60529 and EN/IEC 60947-5-1 || IP67
Electrical Shock Protection Classclass II EN/IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110915EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110902EN
Complementary
- Minimum Switching Current
- 10 mA at 20 °C
- Maximum Load Current
- <= 15 A
- Minimum Actuation Speed
- 0.01 m/s
- Supply Voltage Type
- AC/DC
- Signalling Circuit Type
- AC/DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN/IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 300 VCSA C22.2 No 14 || 250 V 3)EN/IEC 60947-1
- Positive Opening
- with NC contact
- [Ie] Rated Operational Current
- 0.55 A 24 V, DC-13, R300 EN/IEC 60947-5-1 || 0.75 A 240 V, AC-15, R300 EN/IEC 60947-5-1
- Mechanical Durability
- 1000000 cycles
- Body Material
- PA (polyamide)
- Width
- 44 mm
- Minimum Switching Voltage
- 17 V
- Resistance To Mechanical Impact
- 1.2 J against the partition || 4.9 J without partition
- Safety Level
- can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 EN/IEC 61508
Height205-205 mm
Short-Circuit Protection4 A cartridge fuse gG (gl) || 6 A fast blow
[Ithe] Conventional Enclosed Thermal Current4 A
Head MaterialPA (polyamide)
Net Weight0.53 kg
Maximum Operating Rate10 cyc/mn for maximum durability
Insulationdouble insulated
Load Factor1
Minimum Actuator Force For Extraction20 N
Maximum Actuation Speed0.5 m/s
Safety Reliability DataB10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear
Depth51 mm
Maximum Actuator Forcible Withdrawal Rtc1400 N
Supply Frequency50/60 Hz
Specifications
- [Us] Rated Supply Voltage
- 24 V - 15...10 %
- Cable Entry
- 3 entries tapped M20 x 1.5
- Locking Options Description
- with interlocking, locking by solenoid
- Product Or Component Type
- safety switch
- Component Name
- XCSLE
- Material
- plastic
- Contacts Type And Composition
- 1 NC + 1 NO
- Local Signalling
- actuator withdrawn 1 LED orange) || actuator inserted and locked 1 LED green)
- Cable Outer Diameter
- 7-13 mm
Range Of ProductTelemecanique Safety switches XCS
Electrical Connectionspring terminal 1 x 1.5 mm² flexible or solid cable || spring terminal 2 x 0.5 mm² flexible cables with 13 mm bared ends
Solenoid Contacts Type And Composition1 NC + 1 NO slow-break, break before make)
Signalling Circuit Voltage24 V
Designslim
Head Typekey operated turret head
Contact Operationslow-break, break before make
Electromagnet Interlockinglocking on de-energisation and unlocking on energisation of solenoid
Number Of Poles2
