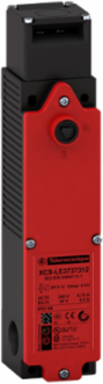

Telemecanique Sensors XCSLE2525342 Safety switch, Telemecanique Safety switches XCS, plastic XCSLE, 2NC+2 NO, slow break, 3 entries tapped M20 -230 V

MPN: XCSLE2525342
PPN: TES-XCSLE2525342
UNSPSC: 39122213

$406.95

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Safety switch, Telemecanique Safety switches XCS, plastic XCSLE, 2NC+2 NO, slow break, 3 entries tapped M20 -230 V

Documentation & Downloads

Specifications

Key Specifications

[Us] Rated Supply Voltage	230 V - 15...10 %
Cable Entry	3 entries tapped M20 x 1.5
Locking Options Description	with interlocking, locking by solenoid
Product Or Component Type	safety switch
Component Name	XCSLE
Material	plastic
Contacts Type And Composition	1 NC + 1 NO
Local Signalling	actuator withdrawn 1 LED orange) \|\| actuator inserted and locked 1 LED green)
Cable Outer Diameter	7-13 mm

Range Of Product	Telemecanique Safety switches XCS
Electrical Connection	spring terminal 1 x 1.5 mm² flexible or solid cable \|\| spring terminal 2 x 0.5 mm² flexible cables with 13 mm bared ends
Solenoid Contacts Type And Composition	1 NC + 1 NO slow-break, break before make)
Signalling Circuit Voltage	230 V
Design	slim
Head Type	key operated turret head
Contact Operation	slow-break, break before make
Electromagnet Interlocking	locking on de-energisation and unlocking on energisation of solenoid
Number Of Poles	2

Complementary

Minimum Switching Current	10 mA at 20 °C
Maximum Load Current	<= 15 A
Minimum Actuation Speed	0.01 m/s
Supply Voltage Type	AC/DC
Signalling Circuit Type	AC
[Uimp] Rated Impulse Withstand Voltage	4 kV EN/IEC 60947-5-1
[Ui] Rated Insulation Voltage	300 VUL 508 \|\| 300 VCSA C22.2 No 14 \|\| 250 V 3)EN/IEC 60947-1
Positive Opening	with NC contact
[Ie] Rated Operational Current	0.55 A 24 V, DC-13, R300 EN/IEC 60947-5-1 \|\| 0.75 A 240 V, AC-15, C300 EN/IEC 60947-5-1
Mechanical Durability	1000000 cycles
Body Material	PA (polyamide)
Width	44 mm
Minimum Switching Voltage	17 V
Resistance To Mechanical Impact	1.2 J against the partition \|\| 4.9 J without partition
Safety Level	can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 \|\| can reach SIL 3 EN/IEC 61508

Height	205-205 mm
Short-Circuit Protection	4 A cartridge fuse gG (gl) \|\| 6 A fast blow
[Ithe] Conventional Enclosed Thermal Current	4 A
Head Material	PA (polyamide)
Net Weight	0.53 kg
Maximum Operating Rate	10 cyc/mn for maximum durability
Insulation	double insulated
Load Factor	1
Minimum Actuator Force For Extraction	20 N
Maximum Actuation Speed	0.5 m/s
Safety Reliability Data	B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear
Depth	51 mm
Maximum Actuator Forcible Withdrawal Rtc	1400 N
Supply Frequency	50/60 Hz

Environment

Product Certifications	CSA \|\| UL \|\| TÜV
Standards	CSA C22.2 No 14 \|\| EN/IEC 60947-5-1 \|\| EN 1088/ISO 14119 \|\| UL 508 \|\| EN/ISO 13849-1 \|\| EN/IEC 62061 \|\| EN/IEC 60204-1
Vibration Resistance	5 gn 10-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-40-70 °C
Protective Treatment	TC

Ambient Air Temperature For Operation	-25-60 °C
Shock Resistance	10 gn 11 ms IEC 60068-2-27
Ip Degree Of Protection	IP66 EN/IEC 60529 and EN/IEC 60947-5-1 \|\| IP67
Electrical Shock Protection Class	class II EN/IEC 61140

Contractual warranty

Warranty	18 months

Offer Sustainability

Rohs Exemption Information	Yes
Environmental Disclosure	ENVPEP110915EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
