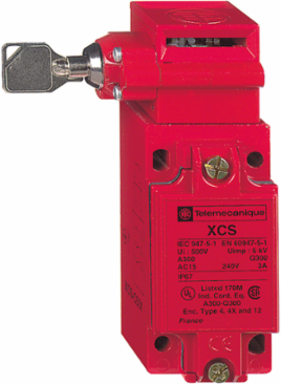

Telemecanique Sensors XCSC513 Safety switch, Telemecanique Safety switches XCS, metal XCSC, 1 NC + 2 NO, slow break, 1 entry tapped 1/2" NPT
- MPN: XCSC513
- PPN: TES-XCSC513
CAD
$326.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Safety switch, Telemecanique Safety switches XCS, metal XCSC, 1 NC + 2 NO, slow break, 1 entry tapped 1/2" NPT
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Electrical Connection | terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Product Or Component Type | safety switch |
| Component Name | XCSC |
| Design | industrial |
| Contacts Type And Composition | 1 NC + 2 NO |
| Local Signalling | on opening of NC contacts 1 LED orange) |
| Cable Entry | 1 entry tapped 1/2" NPT |
|---|---|
| Locking Options Description | with locking of actuator, unlocking by key operated lock |
| Signalling Circuit Voltage | 24/48 V |
| Material | metal |
| Head Type | key operated turret head |
| Contact Operation | slow-break, break before make |
| Number Of Poles | 3 |
Complementary
| Height | 114-114 mm |
|---|---|
| Minimum Actuation Speed | 0.01 m/s |
| Head Material | zamak |
| Net Weight | 0.48 kg |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Positive Opening | with NC contact |
| Minimum Actuator Force For Extraction | 20 N |
| Maximum Actuation Speed | 0.5 m/s |
| Safety Reliability Data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Actuator Forcible Withdrawal Rtc | 1500 N |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
|---|---|
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Signalling Circuit Type | AC/DC |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
| Mechanical Durability | 600000 cycles |
| Body Material | zamak |
| Width | 52 mm |
| Depth | 44 mm |
Environment
| Product Certifications | UL || CSA |
|---|---|
| Standards | EN/IEC 60204-1 || EN/ISO 12100 || EN 1088/ISO 14119 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 EN/IEC 60529 and EN/IEC 60947-5-1 |
| Electrical Shock Protection Class | class I EN/IEC 61140 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP110614EN |
|---|---|
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
|---|
