Telemecanique Sensors XCSC501 Safety switch, Telemecanique Safety switches XCS, metal XCSC, 1 NC + 2 NO, slow break, 1 entry tapped Pg 13
- MPN: XCSC501
- PPN: TES-XCSC501
CAD
$326.73
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

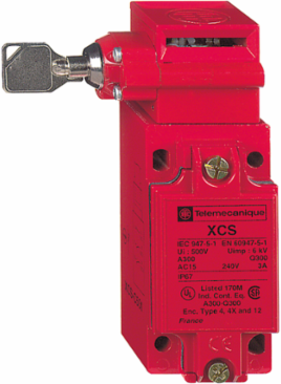

This XCSC Key Operated Safety Switch for guard doors with unlocking by key operated lock has an adjustable turret head and a robust red coated Zamak body with a Pg 13.5 cable gland entry, allowing for flexible installation. It has 2 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 3 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Electrical Connection | terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Product Or Component Type | safety switch |
| Design | industrial |
| Head Type | key operated turret head |
| Contact Operation | slow-break, break before make |
| Cable Outer Diameter | 9-12 mm |
| Cable Entry | 1 entry tapped Pg 13.5 |
|---|---|
| Locking Options Description | with locking of actuator, unlocking by key operated lock |
| Component Name | XCSC |
| Material | metal |
| Contacts Type And Composition | 1 NC + 2 NO |
| Local Signalling | without |
| Number Of Poles | 3 |
Complementary
| Height | 114-114 mm |
|---|---|
| Minimum Actuation Speed | 0.01 m/s |
| Head Material | zamak |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14 |
| [Ie] Rated Operational Current | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
| Mechanical Durability | 600000 cycles |
| Body Material | zamak |
| Width | 52 mm |
| Depth | 44 mm |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
|---|---|
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Net Weight | 0.48 kg |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Positive Opening | with NC contact |
| Minimum Actuator Force For Extraction | 20 N |
| Maximum Actuation Speed | 0.5 m/s |
| Safety Reliability Data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Actuator Forcible Withdrawal Rtc | 1500 N |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
Environment
| Product Certifications | CSA || UL |
|---|---|
| Standards | EN/ISO 12100 || EN 1088/ISO 14119 || EN/IEC 60204-1 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25-70 °C |
|---|---|
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 EN/IEC 60529 and EN/IEC 60947-5-1 |
| Electrical Shock Protection Class | class I EN/IEC 61140 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
