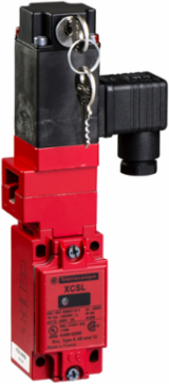

Telemecanique Sensors XCSL566B1 Interlock switch 300 VAC 10as XCSL
- MPN: XCSL566B1
- PPN: TES-XCSL566B1
- UNSPSC: 39122213
CAD
$707.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Interlock switch 300 VAC 10as XCSL
Documentation & Downloads
Specifications
Key Specifications
| Enclosure Type | water resistant enclosure indoor/outdoor || dustproof enclosure indoor/outdoor || ice/sleet proof enclosure indoor/outdoor |
|---|
| Device Short Name | XCSL |
|---|
Complementary
| Contacts Type And Composition | 1 NC || 2 NO staggered |
|---|---|
| Height | 7.64-7.64 in |
| Actuator | key |
| Enclosure Material | metal |
| Installation Direction | electromagnet connection right || actuator supply left |
| Cable Entry | conduit entry 1 13 mm |
| Depth | 1.73 in |
| Number Of Poles | 3 |
| Pilot Light | LED orange |
|---|---|
| [Us] Rated Supply Voltage | 24 V DC |
| Locking Options Description | with locking of actuator, unlocking by key operated lock |
| Contact Operation | slow-break, break before make |
| Line Rated Current | 10 A |
| Key Locking Position | front |
| Permissible Voltage | 300 V AC |
Environment
| Product Certifications | UL listed file E164353 CCN NKCR || CSA LR4408794 class 3211 03 || CE |
|---|---|
| Nema Degree Of Protection | NEMA 1/2/3/4/12 |
| Ambient Air Temperature For Operation | -13-158 °F |
|---|---|
| Ip Degree Of Protection | IP67 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
