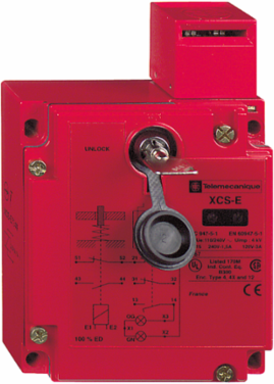

Telemecanique Sensors XCSE5311 Safety switch, Telemecanique Safety switches XCS, metal XCSE, 1NC+2 NO, slow break, 2 entries tapped Pg 13, 24 V
- MPN: XCSE5311
- PPN: TES-XCSE5311
- UNSPSC: 39122213
CAD
$802.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This XCSE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a robust red coated rectangular Zamak body with 2 x Pg 13.5 cable gland entries, allowing for flexible installation. It has 2 normally open and 1 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally open and 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 24 V - 20...10 % |
|---|---|
| Cable Entry | 2 entries tapped Pg 13.5 |
| Locking Options Description | with interlocking, locking by solenoid |
| Product Or Component Type | safety switch |
| Component Name | XCSE |
| Material | metal |
| Contacts Type And Composition | 1 NC + 2 NO |
| Local Signalling | guard open/guard closed and locked 2 LEDs green or orange) |
| Cable Outer Diameter | 9-12 mm |
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Electrical Connection | terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Solenoid Contacts Type And Composition | 1 NC + 1 NO slow-break, simultaneous) |
| Signalling Circuit Voltage | 24/48 V 20...52 V) |
| Design | rectangular |
| Head Type | key operated turret head |
| Contact Operation | slow-break, break before make |
| Electromagnet Interlocking | locking on de-energisation and unlocking on energisation of solenoid |
| Number Of Poles | 3 |
Complementary
| Height | 146-146 mm |
|---|---|
| Minimum Actuation Speed | 0.01 m/s |
| [Ithe] Conventional Enclosed Thermal Current | 6 A |
| Supply Voltage Type | AC/DC |
| Signalling Circuit Type | AC/DC |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 50 VEN/IEC 60947-1 signalling circuit |
| Load Factor | 1 |
| Minimum Actuator Force For Extraction | 20 N |
| Maximum Actuation Speed | 0.5 m/s |
| Safety Reliability Data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Actuator Forcible Withdrawal Rtc | 2000 N |
| Protection Type | overvoltage protection signalling circuit |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Short-Circuit Protection | 10 A cartridge fuse gG (gl) |
|---|---|
| Signalling Circuit Consumption | 7 mA |
| Power Consumption In Va | 10 VA inrush || 10 VA sealed |
| Head Material | zamak |
| Net Weight | 1.14 kg |
| Maximum Operating Rate | 10 cyc/mn for maximum durability |
| Positive Opening | with NC contact |
| [Ie] Rated Operational Current | 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 |
| Mechanical Durability | 1000000 cycles |
| Body Material | zamak |
| Width | 98 mm |
| Depth | 44 mm |
| Supply Frequency | 50/60 Hz |
Environment
| Product Certifications | UL || CSA |
|---|---|
| Standards | EN/IEC 60204-1 || EN 1088/ISO 14119 || EN/ISO 12100 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14 |
| Vibration Resistance | 5 gn 10-500 Hz)IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Protective Treatment | TC |
| Ambient Air Temperature For Operation | -25-40 °C |
|---|---|
| Shock Resistance | 10 gn 11 ms IEC 60068-2-27 |
| Ip Degree Of Protection | IP67 EN/IEC 60529 and EN/IEC 60947-5-1 |
| Electrical Shock Protection Class | class I EN/IEC 61140 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP110916EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Circularity Profile | ENVEOLI110903EN |
