Telemecanique Sensors XCSTE5311 Safety switch, Telemecanique Safety switches XCS, plastic XCSTE, 1NC+1 NO, slow break, 2 entries tapped Pg 11, 24 V
- MPN: XCSTE5311
- PPN: TES-XCSTE5311
CAD
$367.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

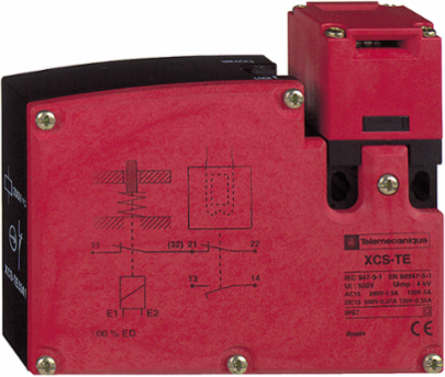

This XCSTE Key Operated Safety Switch for guard doors with locking by solenoid has an adjustable turret head and a red coated polyamide body with a Pg 11 cable gland entry, allowing for flexible installation. It has 1 normally open and 1 normally closed break-before-make (slow break) main contacts actuated by key, contact states given when the key is inserted. And it has 1 normally closed auxiliary contacts actuated by the solenoid, contact states given when the solenoid is not powered. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Documentation & Downloads
Specifications
Key Specifications
- [Us] Rated Supply Voltage
- 24 V - 20...10 %
- Cable Entry
- 1 entry tapped Pg 11
- Locking Options Description
- with interlocking, locking by solenoid
- Product Or Component Type
- safety switch
- Design
- rectangular
- Head Type
- key operated turret head
- Contact Operation
- slow-break, break before make
- Cable Outer Diameter
- 7-10 mm
Range Of ProductTelemecanique Safety switches XCS
Electrical Connectionterminal 1 x 0.5...2 x 1.5 mm² with or without cable end
Solenoid Contacts Type And Composition1 NC slow-break)
Component NameXCSTE
Materialplastic
Contacts Type And Composition1 NC + 1 NO
Electromagnet Interlockinglocking on de-energisation and unlocking on energisation of solenoid
Number Of Poles2
Complementary
- Height
- 94-94 mm
- Minimum Actuation Speed
- 0.01 m/s
- Power Consumption In Va
- 10 VA
- Head Material
- PA (polyamide)
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV EN/IEC 60947-5-1
- [Ui] Rated Insulation Voltage
- 300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
- Insulation
- double insulated
- Load Factor
- 1
- Mechanical Durability
- 1000000 cycles
- Body Material
- PA (polyamide)
- Width
- 110 mm
- Depth
- 33 mm
- Safety Level
- can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Short-Circuit Protection10 A cartridge fuse gG (gl)
[Ithe] Conventional Enclosed Thermal Current6 A
Supply Voltage TypeAC/DC
Net Weight0.36 kg
Maximum Operating Rate10 cyc/mn for maximum durability
Positive Opening Minimum Force15 N
Positive Openingwith NC contact
[Ie] Rated Operational Current0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1
Maximum Actuation Speed0.5 m/s
Safety Reliability DataB10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Actuator Forcible Withdrawal Rtc500 N
Supply Frequency50/60 Hz
Environment
- Product Certifications
- CSA || UL
- Standards
- EN/IEC 60204-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || UL 508 || EN 1088/ISO 14119 || EN/ISO 12100
- Vibration Resistance
- 5 gn 10-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Protective Treatment
- TC
Ambient Air Temperature For Operation-25-60 °C
Shock Resistance10 gn 11 ms IEC 60068-2-27
Ip Degree Of ProtectionIP67 EN/IEC 60529 and EN/IEC 60947-5-1
Electrical Shock Protection Classclass II EN/IEC 61140
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110606EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI110603EN
