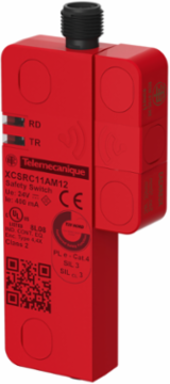

Telemecanique Sensors XCSRC11AM12 Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Standalone model EDM+Auto Start Unique pairing
Telemecanique Sensors XCSRC11AM12 Preventa RFID safety switch, Telemecanique Safety switches XCS, contactless Standalone model EDM+Auto Start Unique pairing
- MPN: XCSRC11AM12
- PPN: TES-XCSRC11AM12
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$359.60/ EA
Description
This XCSRC RFID Contactless Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 NO Solid State PNP safety outputs (OSSDs). It is a standalone model with a unique pairing allowing a direct connection to the contactors without connection to a safety control unit (embedded Automatic start/restart and EDM monitoring). It has a high level of coding (unique code) according to EN/ISO 14119. Its integral LEDs offer a local Signaling, allowing it to clearly display the status of the device. Its PFHD reliability data is 5 x 10⁻¹⁰. It has a plastic body with M12 connector. Its IP65 / IP66 / IP67 / IP69K degree of protection and ECOLAB compatibility makes it ideal for heavy duty use in harsh conditions and hygiene environments. It also complies with EN/ISO 14119, EN/IEC 60947-5-2, EN/IEC 60947-5-3 standards. In Standalone operation or when associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.
Specifications
Complementary
- Product Certifications
- IC || RCM || Ecolab || TÜV || CSA 22-2 || E2 || EAC || FCC
- Switching Frequency
- <= 0.5 Hz
- Standards
- EN/IEC 60947-5-3 || ISO 14119 || EN/IEC 60947-5-2
- Ambient Air Temperature For Operation
- -25-70 °C
- Marking
- RCM || IC || EAC || FCC || TÜV || cULus || CE
- Size
- transponder 50 x 15 x 15 mm || reader 108.3 x 30 x 15 mm
- Material
- valox
- Maximum Switching Voltage
- 26.4 V DC
- Connector Type
- M12 male
- Ambient Air Temperature For Storage
- -40-85 °C
- [Sa] Assured Operating Distance
- 10 mm face to face
- Local Signalling
- green, orange and red 2 multi-colour LEDs
- [Ie] Rated Operational Current
- 60 mA
- Electrical Connection
- 1 male connector
- Safety Reliability Data
- PFH<SUB>D</SUB> = 5E-10/h EN/IEC 62061 || PFH<SUB>D</SUB> = 5E-10/h EN/ISO 13849-1
- Protection Type
- short-circuit protection
- [Ui] Rated Insulation Voltage
- 30 V DC
- Maximum Discordance Time
- 120 ms
Tightening Torque< 1.5 N.m
[Sar] Assured Tripping Distance35 mm face to face
Switching Capacity In Ma400 mA
Shock Resistance30 gn 11 ms EN/IEC 60068-2-27
Vibration Resistance10 gn 10-150 Hz)EN/IEC 60068-2-6
Designrectangular, standard
[Uimp] Rated Impulse Withstand Voltage0.8 kV IEC 60947-5-2
Ip Degree Of ProtectionIP65 EN/IEC 60529 || IP66 EN/IEC 60529 || IP67 EN/IEC 60529 || IP69K DIN 40050
Type Of Output Stagesolid-state, PNP
Maximum Delay First Up5 s
Service Life20 year(s)
Response Time250 ms typical
[Ue] Rated Operational Voltage24 V DC - 20...10 %)SELV or PELV EN/IEC 60204-1
Electrical Shock Protection Classclass III EN/IEC 61140
Safety Outputs2 NO
Approach Directions3 directions-transponder with rotary sensing face
Number Of Poles8
Safety LevelSIL 3 EN/IEC 61508 || SILCL 3 EN/IEC 62061 || PL = e EN/ISO 13849-1 || category 4 EN/ISO 13849-1
Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Component Name
- XCSRC
Product Or Component TypePreventa RFID safety switch
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1804002EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
