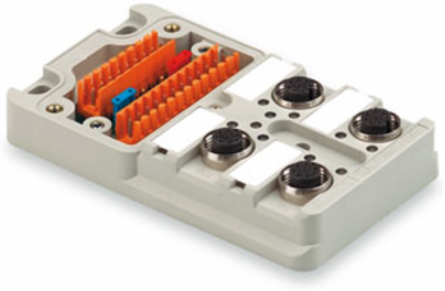

Weidmuller 1800001000 SAI-4-M 5P M12 OL UT
- MPN: 1800001000
- PPN: WDM-1800001000
CAD
$165.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI Passive, Sensor-actuator passive distributor, M12, Hood version, No
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Technical Data Cable
- Suitable for cable carriers
- No
- Conductor O.D., min.
- 6 mm
Number of poles5
Conductor O.D., max.12 mm

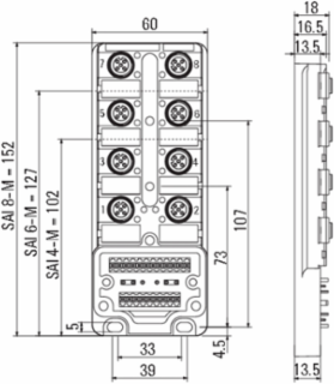

Dimensions And Weights
- Width
- 60 mm
- Height
- 18 mm
- Depth
- 152 mm
- Net weight
- 122.5 g
Width (inches)2.362 inch
Height (inches)0.709 inch
Depth (inches)5.984 inch
Electrical Data
- Rated voltage, min.
- 10 V
- Max. current-carrying capacity per slot
- 4 A
- Insulation strength
- 109 Ω
Rated voltage, max.30 V
Total current10 A
Connection Data
- Conductor O.D., min.
- 6 mm
- Distributor outlet
- Hood version
Conductor O.D., max.12 mm
General Technical Data
- Protection degree
- IP68
- Number of contact sockets
- 4
- LED
- No
Number of poles5
Connection threadM12
Material Data
- Contact material
- CuZn
Contact surfaceGold-plated
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 90 °C
- Operating temperature
- -20 - 90°C
Operating temperature, min.-20 °C
