Weidmuller

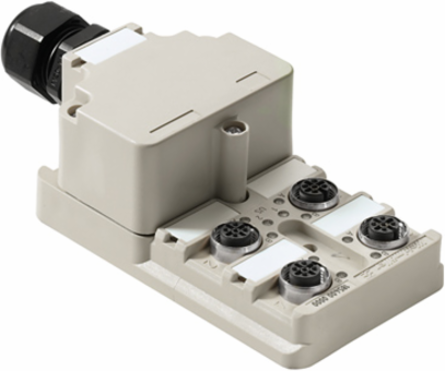

Weidmuller 1854000000 SAI-4-M 5P M12 ZF

  • MPN: 1854000000
  • PPN: WDM-1854000000

CAD

$158.91

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

SAI Passive, Sensor-actuator passive distributor, M12, Hood version, Yes

Documentation & Downloads

Specifications

Approvals

ApprovalsEAC
ROHSConform

Technical Data Cable

Suitable for cable carriersNo
Conductor O.D., min.6 mm
Number of poles5
Conductor O.D., max.12 mm

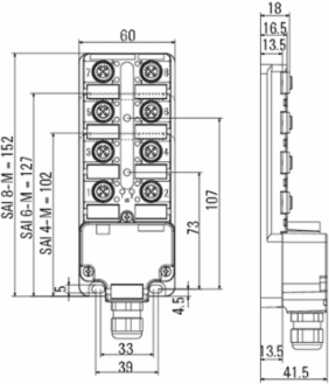

Dimensions And Weights

Width60 mm
Height18 mm
Depth152 mm
Net weight205 g
Width (inches)2.362 inch
Height (inches)0.709 inch
Depth (inches)5.984 inch

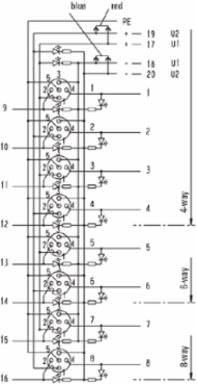

Electrical Data

Rated voltage, min.10 V
Max. current-carrying capacity per slot4 A
Insulation strength109 Ω
Rated voltage, max.30 V
Total current10 A

Connection Data

Conductor O.D., min.6 mm
Distributor outletHood version
Conductor O.D., max.12 mm

General Technical Data

Protection degreeIP68
Number of contact sockets4
LEDYes
Number of poles5
Connection threadM12

Material Data

Contact materialCuZn
Contact surfaceGold-plated

Classifications

ETIM 6.0EC002585
eClass 9.027-44-01-08
eClass 10.027-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.90 °C
Operating temperature-20 - 90°C
Operating temperature, min.-20 °C
SAI-4-M 5P M12 ZF
SAI-4-M 5P M12 ZF
SAI-4-M 5P M12 ZF
