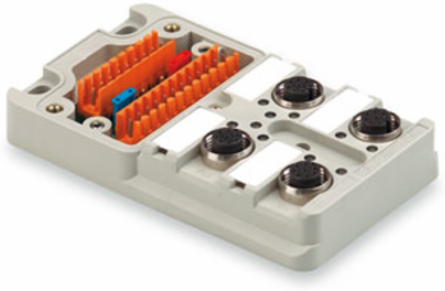

Weidmuller 1701231000 SAI-4-M 5P M12 UT
- MPN: 1701231000
- PPN: WDM-1701231000
CAD
$119.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI Passive, Sensor-actuator passive distributor, M12, Hood version, Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, EAC
- UL File Number Search
- E141197
ROHSConform
Technical Data Cable
- Suitable for cable carriers
- No
- Conductor O.D., min.
- 6 mm
Number of poles5
Conductor O.D., max.12 mm

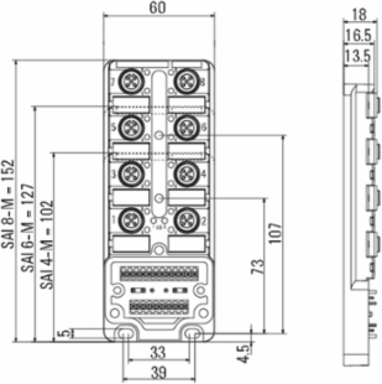

Dimensions And Weights
- Depth
- 102 mm
- Net weight
- 119 g
Depth (inches)4.016 inch
Standards
- Certificate no. (cULus)
- E141197
Electrical Data
- Rated voltage, min.
- 10 V
- Test voltage
- 1 kV
- Total current
- 10 A
- Electrical isolation available
- Yes
Rated voltage, max.30 V
Max. current-carrying capacity per slot4 A
Current per signal2 A
Insulation strength109 Ω
Connection Data
- Conductor O.D., min.
- 6 mm
- Sheathing stripping length
- 100 mm
- Clamping range, min.
- 0.08 mm²
- Storage space
- Standard
Conductor O.D., max.12 mm
Cable glandsM 20
Clamping range, max.1.5 mm²
Distributor outletHood version
General Technical Data
- Protection degree
- IP68
- Number of contact sockets
- 4
- Pollution severity
- 3
- Plugging cycles
- ≤ 50
- LED initiator
- Yes
- LED colour for I/O function
- yellow
Number of poles5
Connection threadM12
Fire behaviourV-0
LEDYes
LED colour for indicating operationgreen
Material Data
- Housing main material
- Pocan
- Housing colour
- grey, RAL 7032
- Screw socket
- Nickel-plated CuZn
- Contact surface
- Gold-plated
Material of distributorPlastic
Hood sealing materialViton
Contact materialCuZn
Contact carrier materialPBT (UL 94 V0)
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature range, max.
- 90 °C
- Operating temperature, max.
- 90 °C
- Operating temperature
- -20 - 90°C
Operating temperature range, min.-20 °C
Operating temperature, min.-20 °C
