Weidmuller

Weidmuller 2512800000 SAI-4-S-3P-M8L-M12-2AND

  • MPN: 2512800000
  • PPN: WDM-2512800000

CAD

$340.25

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

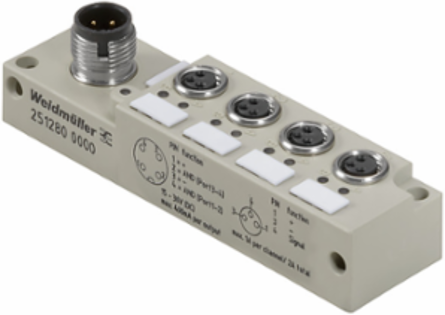

Sensor-actuator passive distributor, M8, with M12 outlet, Yes

Specifications

Approvals

ROHSConform

Technical Data Cable

Suitable for cable carriersNo
Number of poles3

Dimensions And Weights

Net weight67 g

Electrical Data

Rated voltage, min.15 V
Rated voltage24 V
Total current2 A
Rated voltage, max.30 V
Rated current500 mA

Connection Data

Distributor outletwith M12 outlet

General Technical Data

Protection degreeIP67
Number of contact sockets4
Pollution severity3
LEDYes
LED colour for indicating operationgreen
Number of poles3
Connection threadM8
Fire behaviourV-0
LED initiatorYes
LED colour for I/O functionyellow, green

Material Data

Housing main materialPocan
Screw socketNickel-plated CuZn
Contact surfaceGold-plated
Housing colourgrey
Contact materialNickel-plated CuZn
Contact carrier materialPBT (UL 94 V0)

Classifications

ETIM 6.0EC002585
eClass 9.027-44-01-08
eClass 10.027-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08

Environmental Product Compliance

REACH SVHCLead 7439-92-1

Temperatures

Operating temperature, max.90 °C
Operating temperature-20 - 90°C
Operating temperature, min.-20 °C

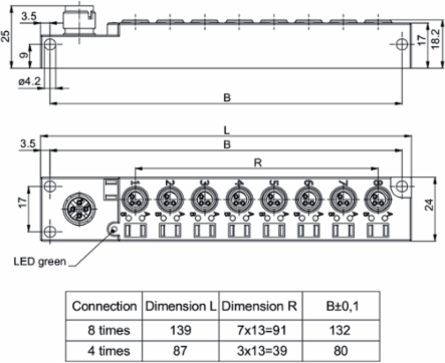

SAI-4-S-3P-M8L-M12-2AND

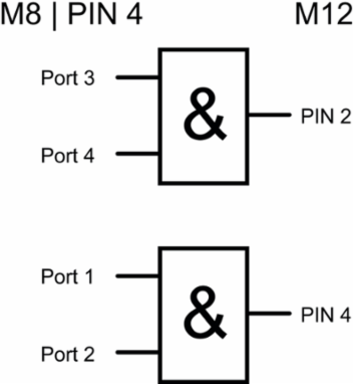

SAI-4-S-3P-M8L-M12-2AND

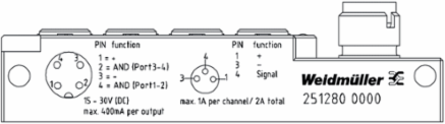

SAI-4-S-3P-M8L-M12-2AND
SAI-4-S-3P-M8L-M12-2AND
