Weidmuller 2512390000 SAI-4-S-3P-M8L-M12-LOG
- MPN: 2512390000
- PPN: WDM-2512390000
CAD
$340.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

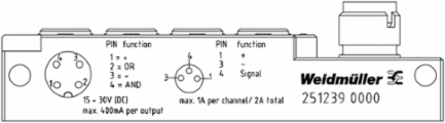

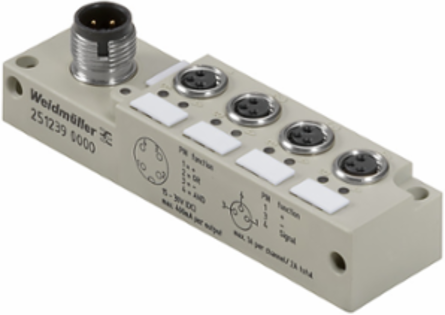

Sensor-actuator passive distributor, M8, with M12 outlet, Yes
Specifications
Approvals
- ROHS
- Conform
Technical Data Cable
- Suitable for cable carriers
- No
Number of poles3

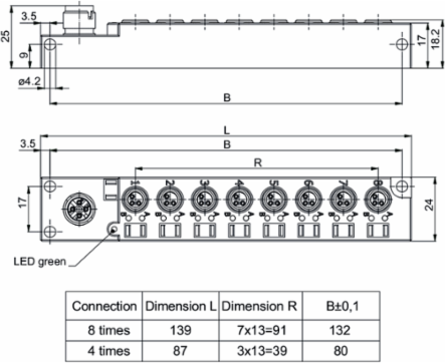

Dimensions And Weights
- Net weight
- 66.4 g
Electrical Data
- Rated voltage, min.
- 15 V
- Rated voltage
- 24 V
- Total current
- 2 A
Rated voltage, max.30 V
Rated current500 mA
Connection Data
- Distributor outlet
- with M12 outlet
General Technical Data
- Protection degree
- IP67
- Number of contact sockets
- 4
- Pollution severity
- 3
- LED
- Yes
- LED colour for indicating operation
- green
Number of poles3
Connection threadM8
Fire behaviourV-0
LED initiatorYes
LED colour for I/O functionyellow, green
Material Data
- Housing main material
- Pocan
- Screw socket
- Nickel-plated CuZn
- Contact surface
- Gold-plated
Housing colourgrey
Contact materialNickel-plated CuZn
Contact carrier materialPBT (UL 94 V0)
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 90 °C
- Operating temperature
- -20 - 90°C
Operating temperature, min.-20 °C
