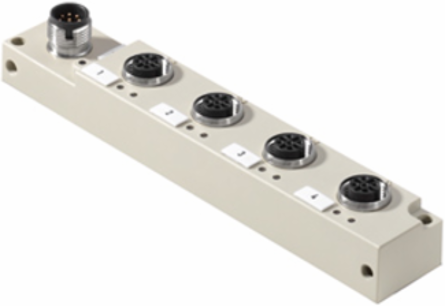

Weidmuller 1267330000 SAI-4-S8 4P M12 L
- MPN: 1267330000
- PPN: WDM-1267330000
CAD
$230.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor-actuator passive distributor, M12, with M12 outlet, 8-pole, A-coded, Yes
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus, EAC
- UL File Number Search
- E92202
ROHSConform
Technical Data Cable
- Suitable for cable carriers
- No
Number of poles4
Dimensions And Weights
- Net weight
- 117 g
Standards
- Certificate No. (cURus)
- E92202
Electrical Data
- Rated voltage, min.
- 10 V
- Max. current-carrying capacity per slot
- 2 A
- Current per signal
- 1 A
Rated voltage, max.30 V
Total current6 A
Connection Data
- Distributor outlet
- with M12 outlet, 8-pole, A-coded
General Technical Data
- Protection degree
- IP67
- Number of contact sockets
- 4
- Pollution severity
- 3
- LED
- Yes
Number of poles4
Connection threadM12
Fire behaviourV-0
Material Data
- Housing main material
- Pocan
- Screw socket
- Nickel-plated CuZn
- Contact surface
- Gold-plated
Housing colourgrey, RAL 7032
Contact materialCuZn
Contact carrier materialPBT (UL 94 V0)
Classifications
- ETIM 6.0
- EC002585
- eClass 9.0
- 27-44-01-08
- eClass 10.0
- 27-44-01-08
ETIM 7.0EC002585
eClass 9.127-44-01-08
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 80 °C
- Operating temperature
- -20 - 80°C
Operating temperature, min.-20 °C
