Weidmuller 2439350000 SAI-H-M12-T-COD
- MPN: 2439350000
- PPN: WDM-2439350000
CAD
$141.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

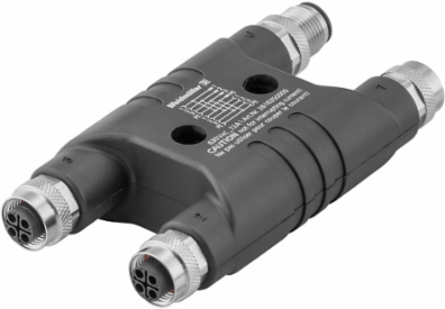

Y connector
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|

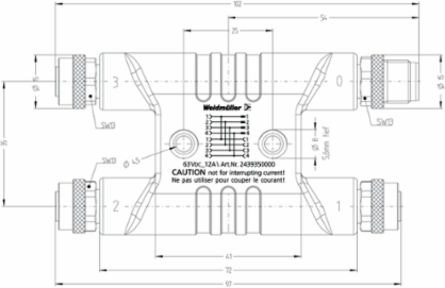

Dimensions And Weights
| Net weight | 120 g |
|---|
Standards
| Connector standard | IEC 61076-2-101 |
|---|
Connection Data

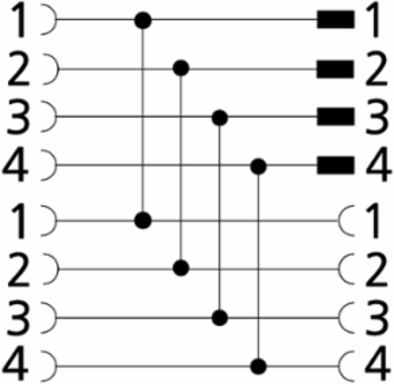

| Group outlet - plug-in connector | M12 pin |
|---|---|
| Single outlet 2 - plug-in connector | M12 socket |
| Single outlet 1 - plug-in connector | M12 socket |
|---|
Classifications
| ETIM 6.0 | EC002925 |
|---|---|
| eClass 9.0 | 27-44-01-06 |
| eClass 10.0 | 27-44-01-06 |
| ETIM 7.0 | EC002925 |
|---|---|
| eClass 9.1 | 27-44-01-06 |
Technical Data Customisable Plug-In Connectors
| Cable glands | M 12 |
|---|---|
| Contact surface | Gold-plated |
| Insulation strength | ≥ 100 MΩ |
| Pollution severity | 3 |
| Rated current | 12 A |
| Temperature range of housing | -30…+90 °C |
| Coding | T |
|---|---|
| Housing main material | TPU |
| Number of poles | 4 |
| Protection degree | IP67 |
| Shield connection | No |
