Weidmuller 2664870000 SAI-M12-KBC-20/22
- MPN: 2664870000
- PPN: WDM-2664870000
CAD
$2.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

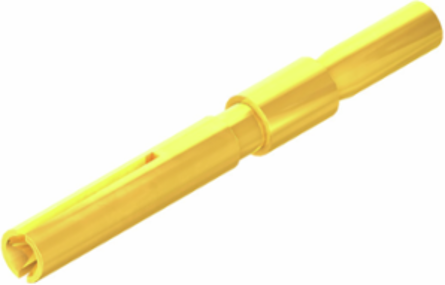

Contact, Socket connector
Specifications
Classifications
| ETIM 6.0 | EC000796 |
|---|---|
| eClass 9.0 | 27-44-02-92 |
| eClass 10.0 | 27-44-02-92 |
| ETIM 7.0 | EC000796 |
|---|---|
| eClass 9.1 | 27-44-02-90 |
Technical Data Customisable Plug-In Connectors
| Coding | D |
|---|---|
| Connection cross-section, max. | 0.518 mm² |
| Contact surface | Gold-plated |
| Pollution severity | 3 |
| Type of connection | Crimp connection |
| Connection cross-section | AWG 20 - AWG 22 |
|---|---|
| Connection cross-section, min. | 0.326 mm² |
| Number of poles | 4 |
| Rated current | 7 A |
Dimensions And Weights
| Net weight | 0.273 g |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
