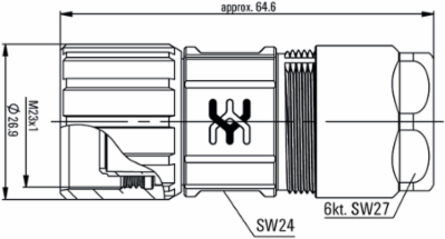

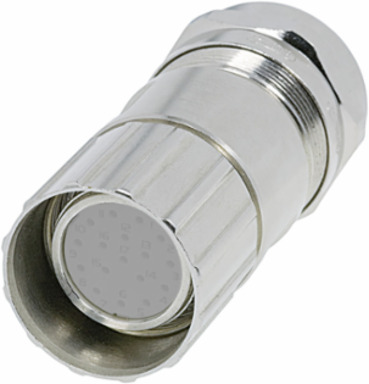

Weidmuller 2009390000 SAI-M23-GS-3/7
- MPN: 2009390000
- PPN: WDM-2009390000
CAD
$18.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor/Actuator plug-in connector, Empty enclosure
Documentation & Downloads
Specifications
General Data
| Cable diameter, max. | 7 mm |
|---|---|
| Conductor O.D. | 3 - 7mm |
| Conductor O.D., min. | 3 mm |
| Housing main material | Copper-zinc alloy |
| Pollution severity | 3 |
| Shield connection | Yes |
| Cable diameter, min. | 3 mm |
|---|---|
| Conductor O.D., max. | 7 mm |
| Connection thread | M23 |
| Plugging cycles | > 1000 |
| Protection degree | IP67, IP69K |
| Temperature range of housing | -40…+125 °C |
Approvals
| Approvals | UR |
|---|---|
| UL File Number Search | E344862 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 50 g |
|---|
Standards
| Certificate No. (UR) | E344862 |
|---|
Classifications
| ETIM 6.0 | EC000437 |
|---|---|
| eClass 9.1 | 27-44-02-02 |
| ETIM 7.0 | EC000437 |
|---|---|
| eClass 10.0 | 27-44-02-24 |
Product Information
| Product information | Enclosures, inserts and crimp contacts need to be ordered separately. |
|---|
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 125 °C |
|---|
| Operating temperature, min. | -40 °C |
|---|
