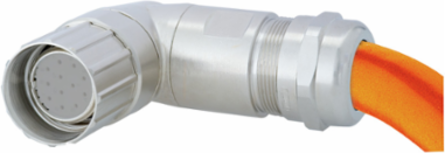

Weidmuller 1169920000 SAI-M23-GSW-S-7/12
- MPN: 1169920000
- PPN: WDM-1169920000
CAD
$41.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sensor/Actuator plug-in connector, Empty enclosure
Documentation & Downloads
Specifications
General Data
- Cable diameter, max.
- 12 mm
- Conductor O.D.
- 7 - 12mm
- Conductor O.D., min.
- 7 mm
- Housing main material
- Copper-zinc alloy
- Pollution severity
- 3
- Shield connection
- Yes
Cable diameter, min.7 mm
Conductor O.D., max.12 mm
Connection threadM23
Plugging cycles> 1000
Protection degreeIP67, IP69K
Temperature range of housing-40…+125 °C
Approvals
- Approvals
- UR
- UL File Number Search
- E344862
ROHSConform

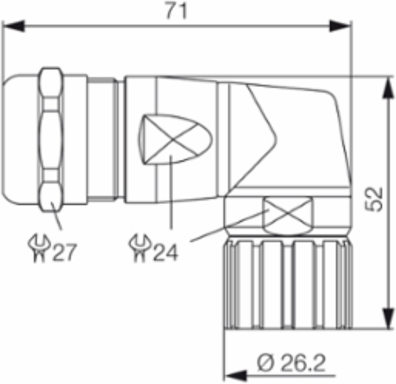

Dimensions And Weights
- Net weight
- 152 g
Standards
- Certificate No. (UR)
- E344862
Classifications
- ETIM 6.0
- EC000437
- eClass 9.1
- 27-44-02-02
ETIM 7.0EC000437
eClass 10.027-44-02-24
Product Information
- Product information
- Enclosures, inserts and crimp contacts need to be ordered separately.
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 125 °C
Operating temperature, min.-40 °C
