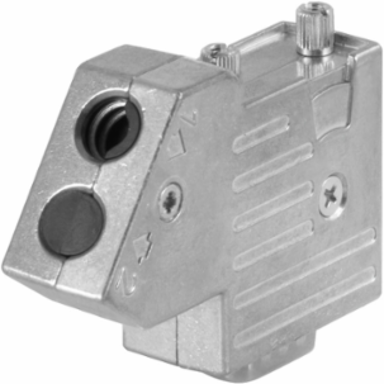

Weidmuller 1551080000 SAI-SUB-D 9 SK35
- MPN: 1551080000
- PPN: WDM-1551080000
CAD
$56.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SUB-D
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 46 mm |
|---|---|
| Height | 64.5 mm |
| Depth | 16.8 mm |
| Net weight | 20 g |
| Width (inches) | 1.811 inch |
|---|---|
| Height (inches) | 2.539 inch |
| Depth (inches) | 0.661 inch |
Technical Specifications For Sub-D Connector
| BUS interface | D-Sub 9-pole, Pin |
|---|---|
| Housing main material | ZnAl |
| Interlock | UNC4-40 |
| Plugging cycles | ≥ 200 |
| Temperature range of housing | -20...+70 ° C |
| BUS, cable interface | Screw connection |
|---|---|
| Humidity | Max. 75% at +25°C, non-condensing |
| Outgoing elbow | 35° |
| Protection degree | IP30 |
| Terminating resistor available | No |
Classifications
| ETIM 6.0 | EC001132 |
|---|---|
| eClass 9.0 | 27-44-03-02 |
| eClass 10.0 | 27-44-03-02 |
| ETIM 7.0 | EC001132 |
|---|---|
| eClass 9.1 | 27-44-03-90 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Humidity | Max. 75% at +25°C, non-condensing |
|---|
