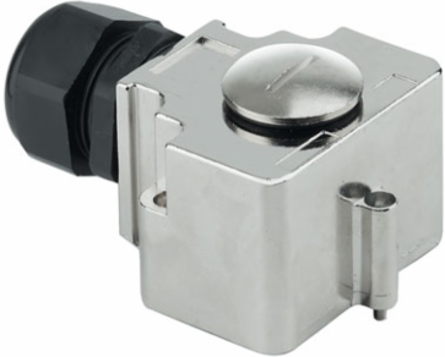

Weidmuller 1752083000 SAI 4/6/8 MH-MHD BLZF
- MPN: 1752083000
- PPN: WDM-1752083000
CAD
$157.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI Passive, Sensor-actuator passive distributor, Hood version with M25 outlet
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Technical Data Cable
| Suitable for cable carriers | No |
|---|---|
| Conductor O.D., max. | 18 mm |
| Conductor O.D., min. | 14 mm |
|---|
Dimensions And Weights
| Width | 59.2 mm |
|---|---|
| Height | 44.5 mm |
| Depth | 56.9 mm |
| Net weight | 100 g |
| Width (inches) | 2.331 inch |
|---|---|
| Height (inches) | 1.752 inch |
| Depth (inches) | 2.24 inch |
Electrical Data
| Rated voltage, min. | 10 V |
|---|---|
| Max. current-carrying capacity per slot | 4 A |
| Rated voltage, max. | 30 V |
|---|
Connection Data
| Conductor O.D., min. | 14 mm |
|---|---|
| Cable glands | M 25 |
| Conductor O.D., max. | 18 mm |
|---|---|
| Distributor outlet | Hood version with M25 outlet |
General Technical Data
| Protection degree | IP68 |
|---|
| Pollution severity | 3 |
|---|
Material Data
| Housing main material | Zinc diecast (hood) |
|---|---|
| Contact surface | Gold-plated |
| Contact material | CuZn |
|---|
Classifications
| ETIM 6.0 | EC002585 |
|---|---|
| eClass 9.0 | 27-44-01-08 |
| eClass 10.0 | 27-44-01-08 |
| ETIM 7.0 | EC002585 |
|---|---|
| eClass 9.1 | 27-44-01-08 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
