Weidmuller 2616440000 SAI-T-M12-T-COD
- MPN: 2616440000
- PPN: WDM-2616440000
CAD
$64.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

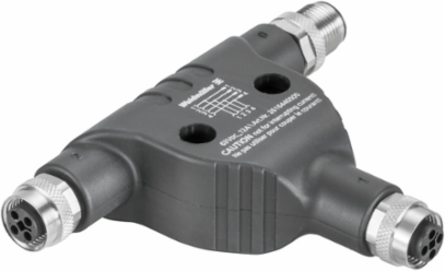

Y connector
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 0.001 g
Standards
- Connector standard
- IEC 61076-2-101
Connection Data
- Group outlet - plug-in connector
- M12 pin
- Single outlet 2 - plug-in connector
- M12 socket
Single outlet 1 - plug-in connectorM12 socket
Classifications
- ETIM 6.0
- EC002925
- eClass 9.0
- 27-44-01-06
- eClass 10.0
- 27-44-01-06
ETIM 7.0EC002925
eClass 9.127-44-01-06
Technical Data Customisable Plug-In Connectors
- Cable glands
- M 12
- Contact surface
- Gold-plated
- Insulation strength
- ≥ 100 MΩ
- Pollution severity
- 3
- Rated current
- 12 A
- Temperature range of housing
- -30…+90 °C
CodingT
Housing main materialTPU
Number of poles4
Protection degreeIP67
Shield connectionNo
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
