Weidmuller 1380620000 SAIBC-D-PN-6.5-C5
- MPN: 1380620000
- PPN: WDM-1380620000
CAD
$45.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

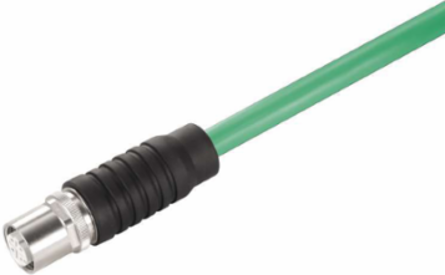

Sockets prefabricated to customer spec., M12, Female socket, straight
Documentation & Downloads
Specifications
Electrical Properties
- Rated voltage
- 50 V
Approvals
- Approvals
- EAC
ROHSConform
Dimensions And Weights
- Net weight
- 25 g
Standards
- Connector standard
- IEC 61076-2-101
General Info

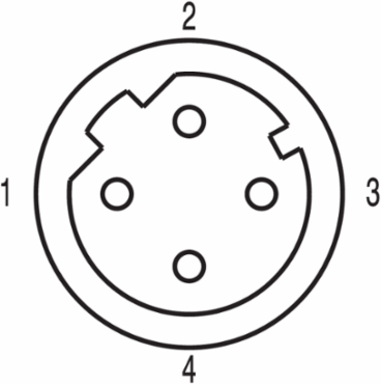

- Number of poles
- 4
- Category
- Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
- Contact surface
- Gold-plated
- Plugging cycles
- ≥ 200
Housing main materialCuZn
Connection threadM12
Protection degreeIP67
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 6.5 mm
- Cable glands
- M 12
- Coding
- D
- Connection cross-section, min.
- 0.34 mm²
- Housing main material
- CuZn
- Plugging cycles
- ≥ 200
- Protection degree
- IP67
- Rated voltage
- 50 V
- Temperature range of housing
- -40 … +85 ° C
Cable diameter, min.6.5 mm
CategoryCat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
Connection cross-section, max.0.5 mm²
Contact surfaceGold-plated
Number of poles4
Pollution severity3
Rated current4 A
Shield connectionYes
Type of connectionCrimp connection
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 85 °C
Operating temperature, min.-20 °C
