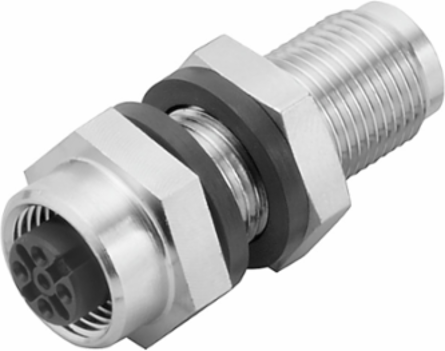

Weidmuller 2485310000 SAI-WDF 5P B M12 K
- MPN: 2485310000
- PPN: WDM-2485310000
CAD
$41.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAI-WDF 5P B M12 K
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|

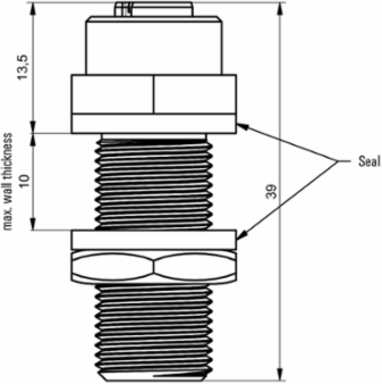

Dimensions And Weights
| Net weight | 24 g |
|---|
Classifications
| ETIM 6.0 | EC002925 |
|---|---|
| eClass 9.0 | 27-44-01-06 |
| eClass 10.0 | 27-44-01-06 |
| ETIM 7.0 | EC002925 |
|---|---|
| eClass 9.1 | 27-44-01-06 |
General Technical Specifications
| Coding | B |
|---|---|
| Contact material | CuZn |
| Housing main material | CuZn |
| Protection degree | IP67 |
| Rated voltage | 60 V |
| Type of connection | Screw connection |
| Connection thread | M12 socket, M12 plug |
|---|---|
| Contact surface | Gold-plated |

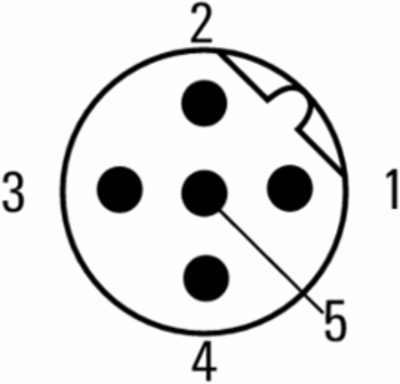

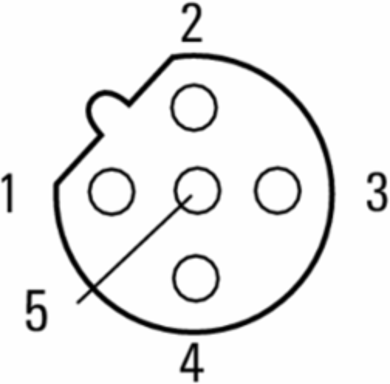

| Number of poles | 5 |
| Rated current | 2 A |
| Temperature range of housing | -40 … +85 ° C |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
