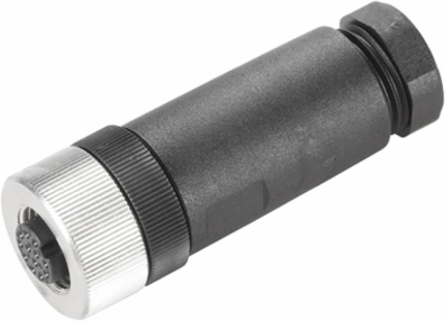

Weidmuller 1924960000 SAIB-12/9-(TL)
- MPN: 1924960000
- PPN: WDM-1924960000
CAD
$25.30
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Sockets prefabricated to customer spec., M12, Female socket, straight
Documentation & Downloads
Specifications
Approvals
- Approvals
- cURus
- UL File Number Search
- E307231
ROHSConform
Dimensions And Weights
- Net weight
- 24 g
Standards
- Connector standard
- IEC 61076-2-101
Certificate No. (cURus)E307231
Classifications
- ETIM 6.0
- EC002062
- eClass 9.0
- 27-44-01-02
- eClass 10.0
- 27-44-01-02
ETIM 7.0EC002635
eClass 9.127-44-01-03
Technical Data Customisable Plug-In Connectors
- Cable diameter, max.
- 8 mm
- Cable glands
- PG 9
- Connection cross-section, max.
- 0.25 mm²
- Contact surface
- Gold-plated
- Insulation strength
- 108 Ω
- Plugging cycles
- ≥ 100
- Protection degree
- IP67
- Rated voltage
- 30 V
- Temperature range of housing
- -40 … +85 ° C
- Type of connection
- Solder connection
Cable diameter, min.6 mm
CodingA
Connection cross-section, min.0.14 mm²
Housing main materialPA
Number of poles12
Pollution severity3
Rated current1 A
Shield connectionNo
Threaded ring materialDiecast zinc
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
