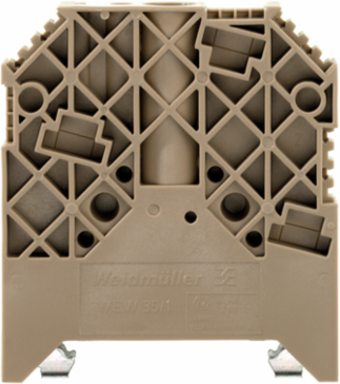

Weidmuller 1059000000 WEW 35/1
- MPN: 1059000000
- PPN: WDM-1059000000
CAD
$5.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
W-Series, End bracket
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 12 mm |
|---|---|
| Height | 56 mm |
| Depth | 62.5 mm |
| Net weight | 36.3 g |
| Width (inches) | 0.472 inch |
|---|---|
| Height (inches) | 2.205 inch |
| Depth (inches) | 2.461 inch |
Dimensions
| TS 35 offset | 28 mm |
|---|
Additional Technical Data
| Installation advice | Direct mounting |
|---|---|
| Type of mounting | when screwed in |
| Interlock | for screw fixing |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | dark beige |
|---|
Classifications
| ETIM 6.0 | EC001041 |
|---|---|
| eClass 9.0 | 27-14-11-35 |
| eClass 10.0 | 27-14-11-35 |
| ETIM 7.0 | EC001041 |
|---|---|
| eClass 9.1 | 27-14-11-35 |
| UNSPSC | 30-21-18-01 |
System Specifications
| Version | For the terminals |
|---|
| Rail | TS 35 |
|---|
Temperatures
| Continuous operating temp., min. | -50 °C |
|---|
| Continuous operating temp., max. | 100 °C |
|---|
Conductors For Clamping (Rated Connection)
| Tightening torque, max. | 2.4 Nm |
|---|
| Tightening torque, min. | 1.2 Nm |
|---|
