Weidmuller 9457240000 SAIB-4/7

SAIB-4/7 - https://media.province-electric.com/web-weidmueller/2019q4/7d90287d4cef4be1e7a8a28e5a6a9fdda2bbf4b4-medium.png

MPN: 9457240000
PPN: WDM-9457240000

Spec sheet

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$9.67/ EA

Qty:

Loading add to cart quantity...

Description

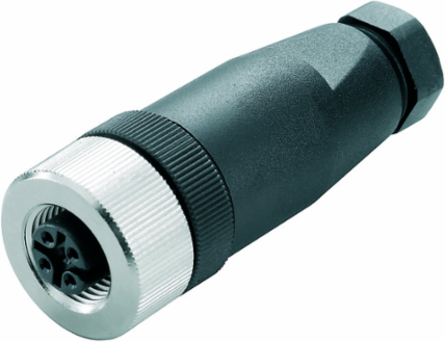

Sockets prefabricated to customer spec., M12, Female socket, straight

Specifications

Approvals

Approvals: cURus, EAC

UL File Number Search: E307231

ROHSConform

Dimensions And Weights

Net weight: 25 g

Standards

Connector standard: IEC 61076-2-101

Certificate No. (cURus)E307231

Classifications

ETIM 6.0: EC002062

eClass 9.0: 27-44-01-02

eClass 10.0: 27-44-01-02

ETIM 7.0EC002635

eClass 9.127-44-01-03

UNSPSC30-21-18-10

Technical Data Customisable Plug-In Connectors

Cable diameter, max.: 6 mm

Cable glands: PG 7

Connection cross-section, max.: 0.75 mm²

Contact surface: CuSnZn

Insulation strength: 108 Ω

Plugging cycles: ≥ 50

Protection degree: IP67

Rated voltage: 250 V

Temperature range of housing: -40 … +85 ° C

Type of connection: Screw connection

Cable diameter, min.4 mm

CodingA

Connection cross-section, min.0.14 mm²

Housing main materialPA

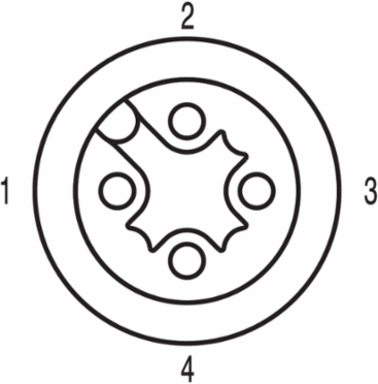

Number of poles4

Pollution severity3

Rated current4 A

Shield connectionNo

Threaded ring materialDiecast zinc

Environmental Product Compliance

REACH SVHC: Lead 7439-92-1

Temperatures

Operating temperature range, max.: 85 °C

Operating temperature, max.: 85 °C

Operating temperature range, min.-25 °C

Operating temperature, min.-40 °C
